Solenoid Valve, Pilot Operated 1/2" | Brass

SKU: SOLP2B12V

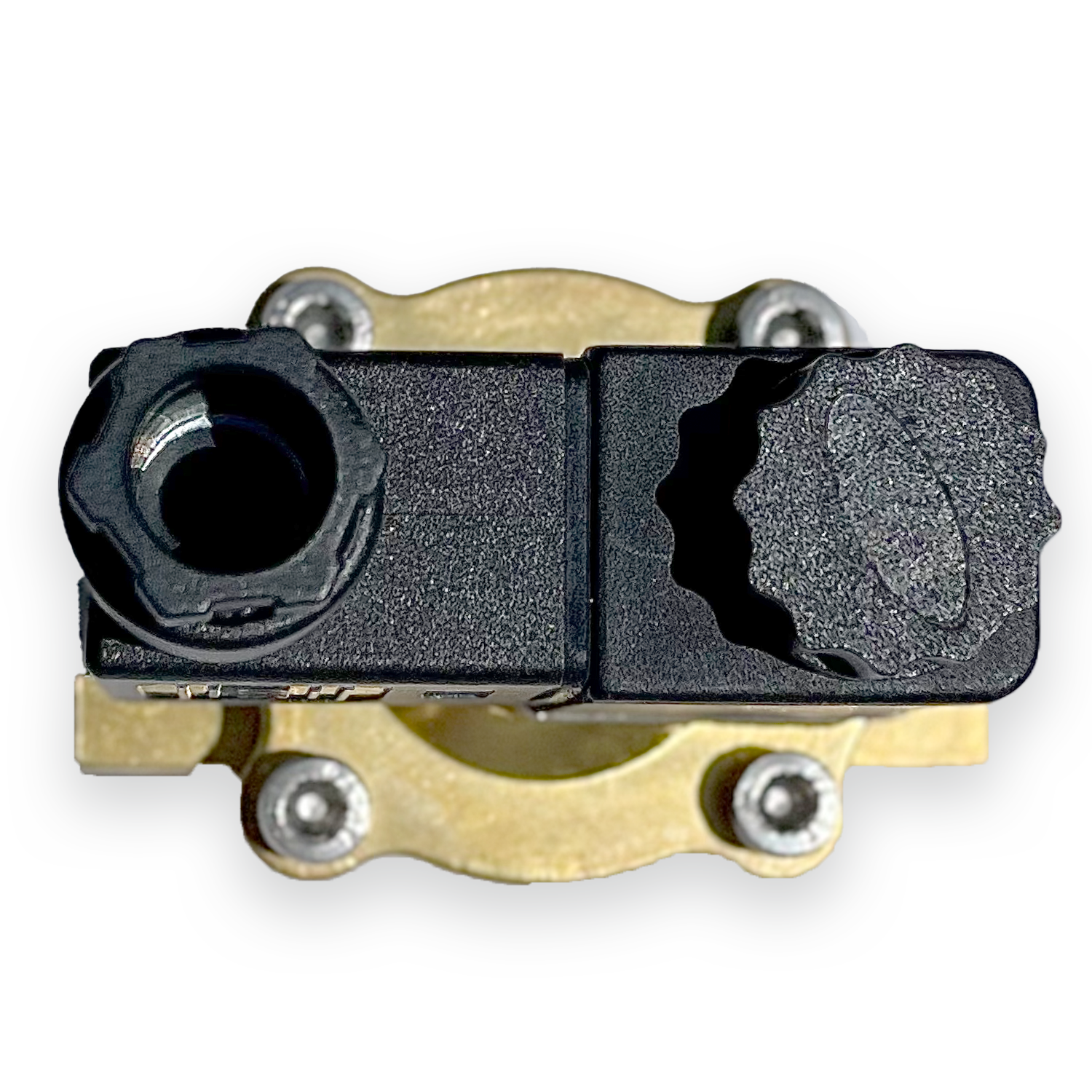

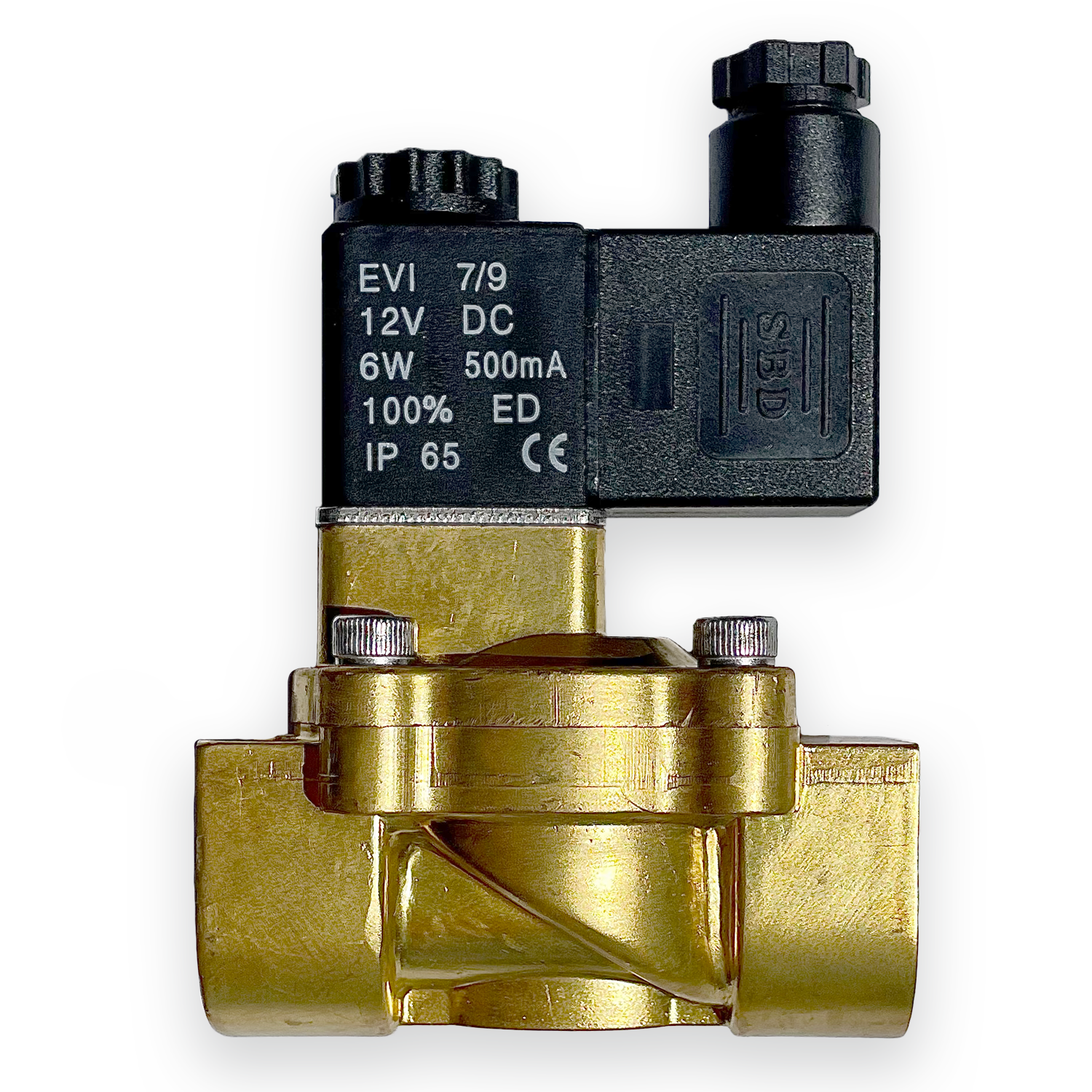

1/2" solenoid valve pilot operated Main

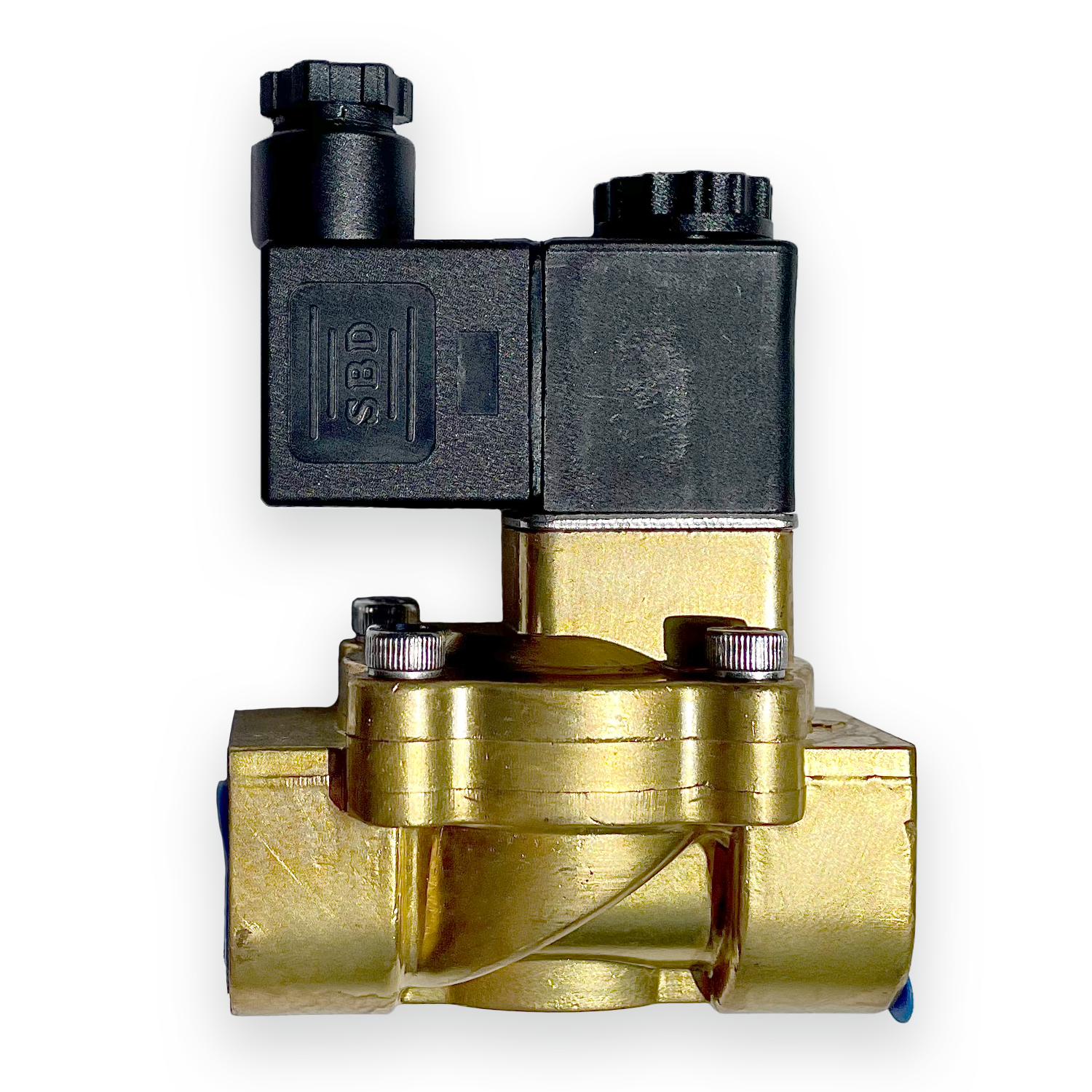

1/2" pilot operated solenoid valve side 1
brass solenoid valve, pilot operated, 1/2"
solenoid valve - brass body, pilot operated
Solenoid Valve | Brass Media Dimensions
Solenoid Valve 1/2" | Brass Spec Sheet
Solenoid Valve 1/2" | Brass, Advantages and Disadvantages Breakdown how it works 1

Solenoid Valve, Pilot Operated 1/2" | Brass

SKU: SOLP2B12V
Voltage
Regular price $59.95
/
  • FREE SAME DAY SHIPPING FOR ORDERS OVER $25 (US ONLY)

Solenoid Valve | Brass Body

Our brass pilot-operated solenoid valves feature 1/2” female NPT connections, making them compatible with 1/2” copper or CPV plastic tubing. These valves are designed to be controlled by coin timers, which signal the internal pilot to switch and open the valve, allowing water to flow through.

Table showing which solenoid valve voltage goes with each coin timer voltage

How Solenoid Valves Work

1. Coin Timer: Insert a coin to start the timer, which controls how long the valve stays open.

2. Electrical Signal: The coin timer sends an electrical signal to the solenoid valve, instructing it to open.

3. Solenoid Valve Opens: Upon receiving the signal, the solenoid valve opens, allowing water (or gas) to flow through, such as in a coin-operated shower.

4. Timer Runs: The coin timer keeps track of the duration based on the amount of money inserted.

5. Valve Closes: When the set time expires, the coin timer signals the solenoid valve to close, stopping the flow of water (or gas).

This system ensures efficient and controlled use of water, perfect for applications like coin-operated showers.

    • Valve Type: Normally Closed Solenoid Valve
    • Valve Activation: Pilot
    • Coil Type: UR Rated, Class F
    • Body Material: Lead Free Solid Brass
    • Sealing Material: Buna-N Rubber
    • Finish Type: Solid Brass
    • Be Sure You Order The Correct Voltage To Match Your Coin Timer!
    • Connection Inlet: 1/2" FPT
    • Connection Outlet: 1/2" FPT
    • Length: 2.75"
    • Height: 4"
    • Width: 2"
    • Max Working Temperature: 176 Degrees F
    • Easy Disassembly for cleaning and field repair
    • Corrosion Resistant Body
    • Working Temperature Range: 14 Degrees F - 176 Degrees F
    • Solenoid Valve
    • Electrician: Solenoid Valve must be wired by a licensed electrician

    • Commercial and Residential
    • Air, Gas, Water, and Light Oil

    We are in Sutton, Massachusetts. All orders placed before 3PM EST will be shipped on the same business day via USPS or UPS. All orders shipping within the continental US over $25 ship free.

    We do not ship outside of the US, Canada, Alaska and Hawaii. We also do not ship to APO/FPO mailboxes. We are sorry for the inconvenience!

    UPS Shipping TIme Estimates - Same day free shipping King Supply Company
