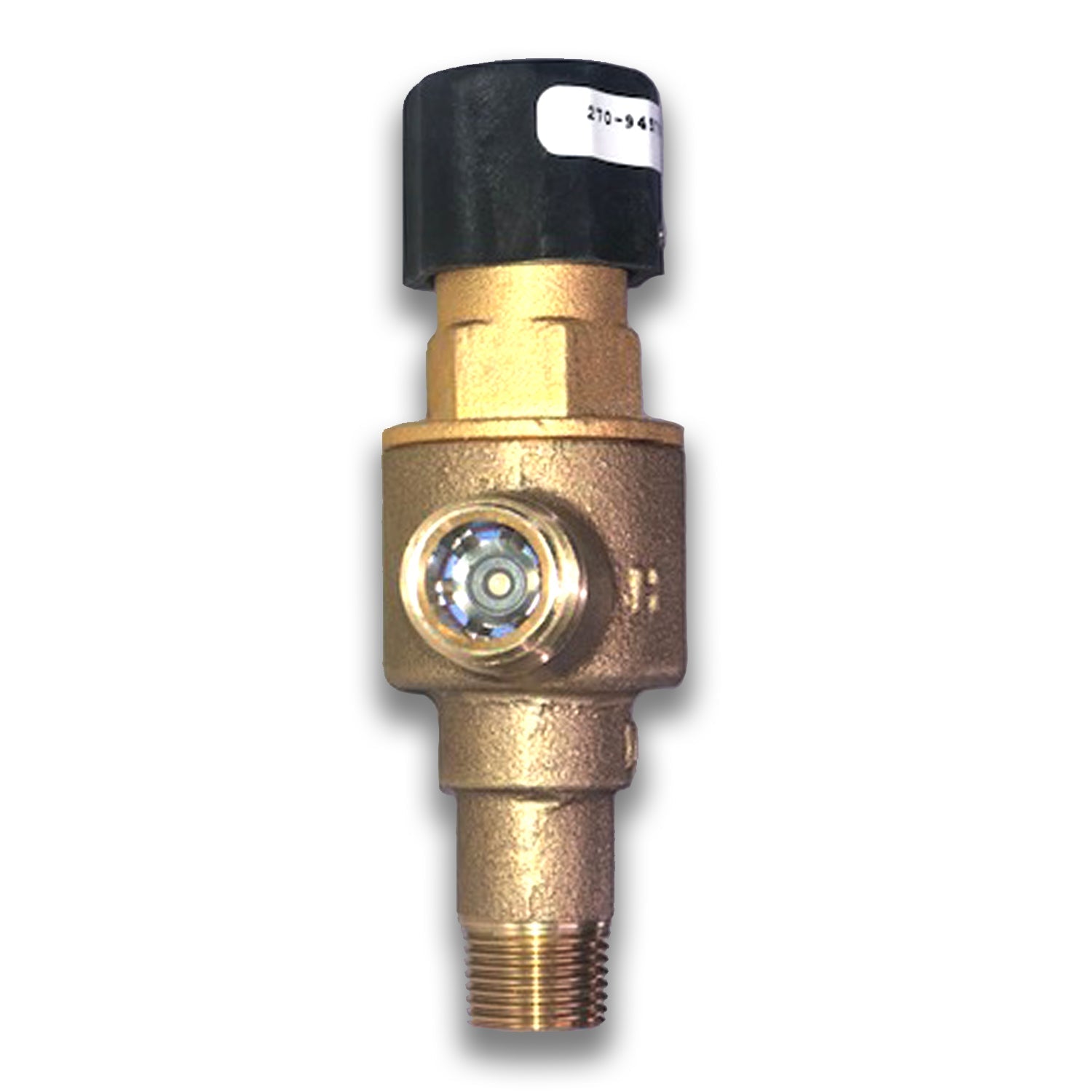

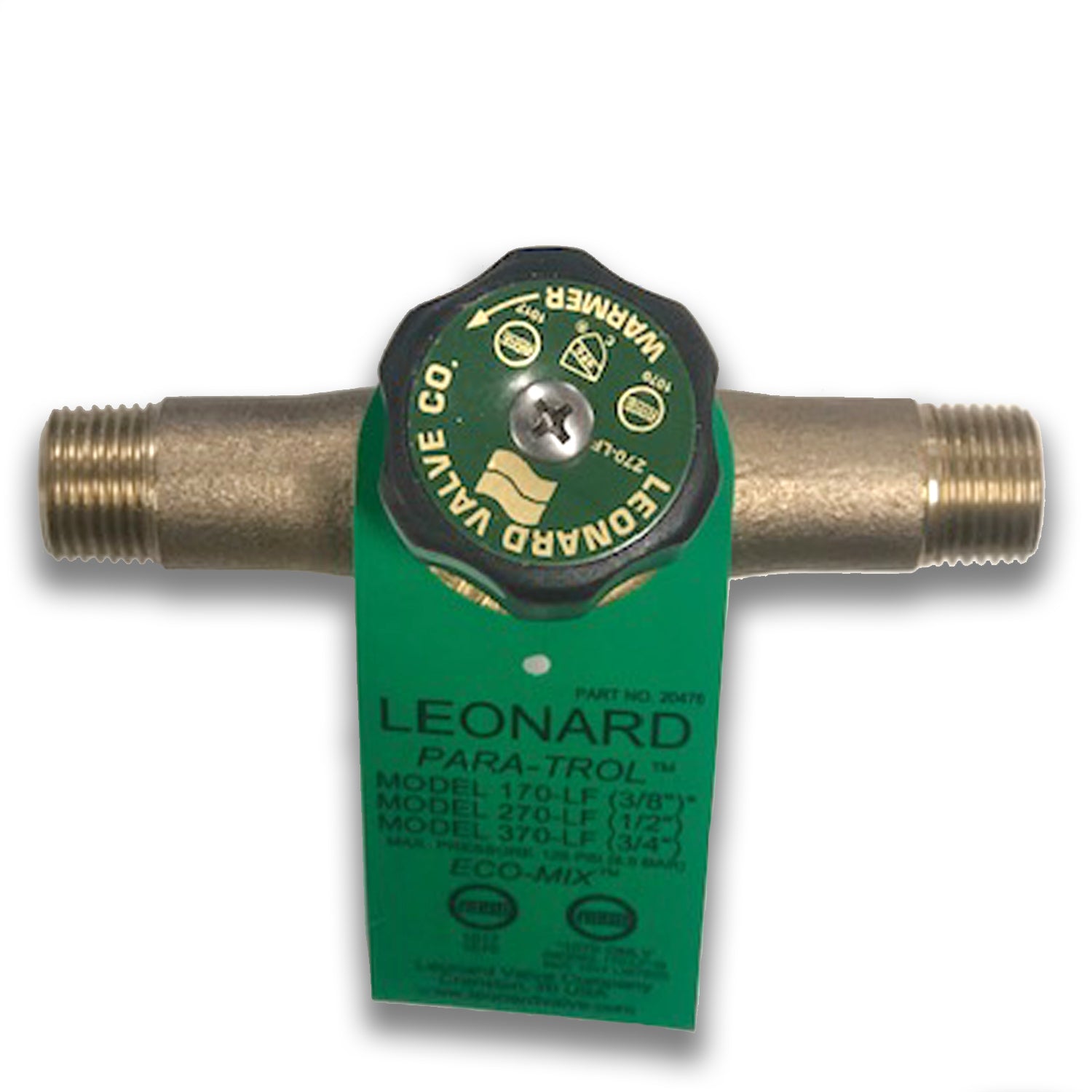

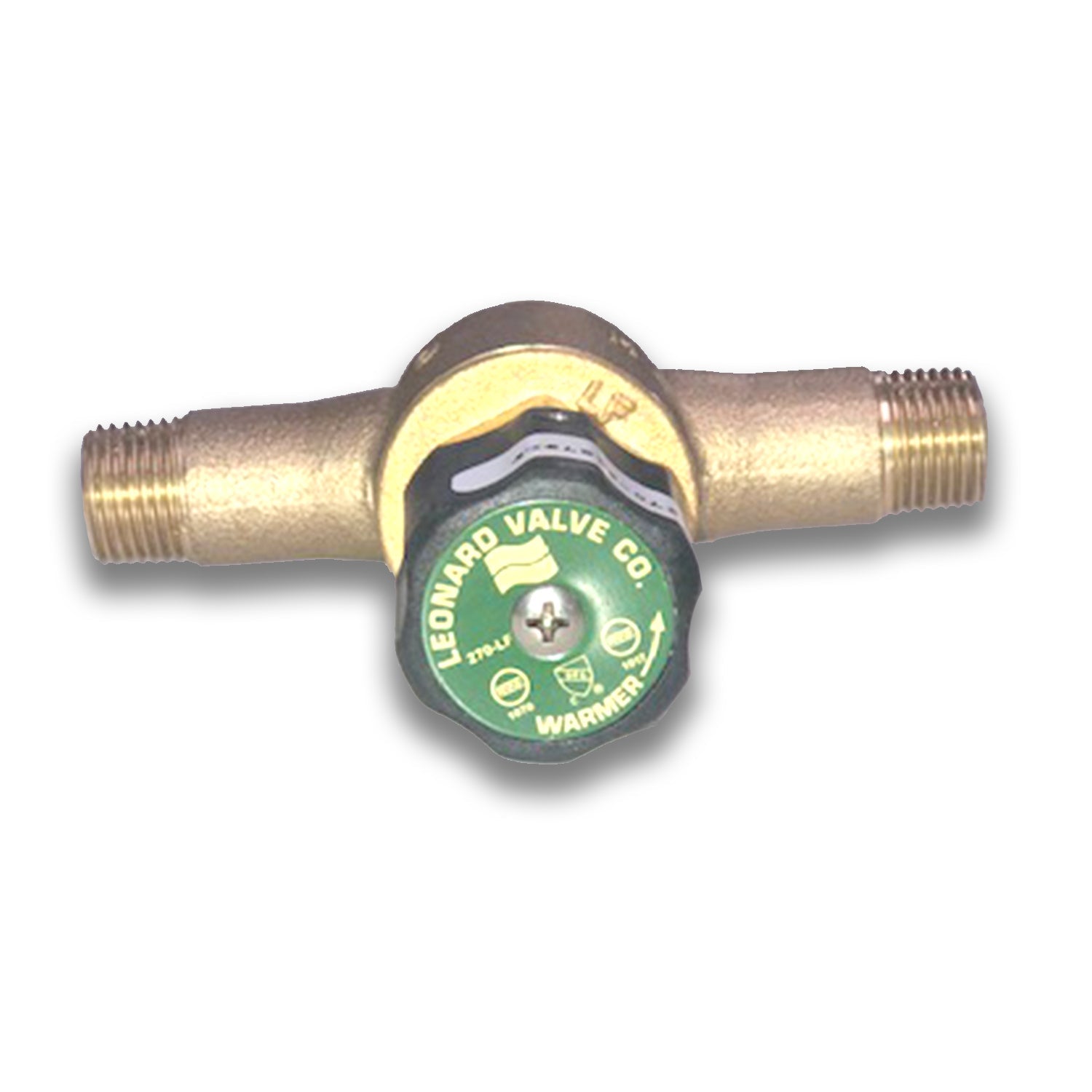

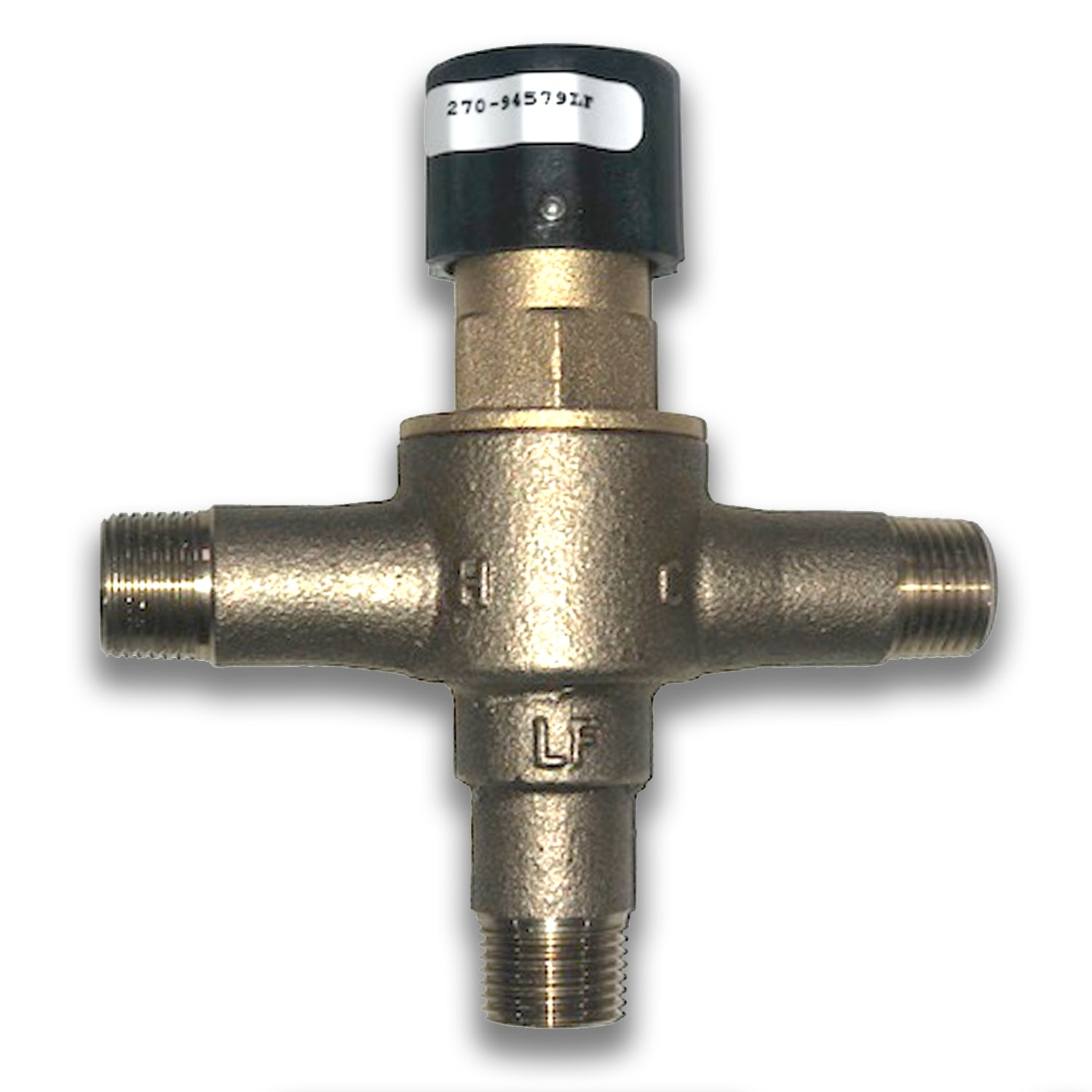

Sparco Anti-Scald Mixing Valve 1/2"

PMVSPCO12NL

Regular price $140.95

Shipping calculated at checkout.

Anti-Scald Mixing Valve | 1/2"

General Information

  • Valve Type: Anti-Scald Mixing Valve
  • Construction Material: Solid Brass
  • Lead Free
  • Field Repairable

Anti-Scald Mixing Valve Features

  • Connection: 1/2" MIP
  • Connection Type: NPT
  • Valve Body Length: 5.50"
  • Valve Body Width: 1.875"
  • Valve Body Height: 5.00"
  • Inlet: 0.50" (2)
  • Outlet: 0.50" (1)

Anti-Scald Mixing Valve Features

  • Minimum Flow: 0.25 GPM (0.951 l/Min)
  • Maximum Pressure: 125 PSI (8.6 BAR)
  • Temperature: Adjustable - 90 degrees to 140 degrees F
  • Maximum Hot Water Temperature: 200 degrees F
  • Approach Temperature: 5 Degrees F

Anti-Scald Mixing Valve Includes

  • Buna O-Rings
  • Vandal Resistant Cap

Anti-Scald Mixing Valve Standards

  • ASSE 1017 Certified
  • ASSE 1070 Certified
  • CSA Approved
  • IAPMO Approved

Anti-Scald Mixing Valve Uses

  • Commercial Sinks and Showers

SPECIFICATION SHEET

INSTALLATION INSTRUCTIONS

QUESTIONS & ANSWERS

Ask a Question
  • Is this anti-scald mixing valve CSA approved?

    Yes, this anti-scald mixing valve is CSA registered uner CSA B125.70-15.

  • Is this anti-scald valve able to be adjusted by the user?

    Yes and no. This anti-scald valve does come equipped with a locking screw to lock the maximum output temperature in place, when installed it cannot be adjusted, however an installer does have access to removing this locking screw to perform regular maintenance and adjust the maximum output temperature.

  • Does this anti-scald mixing valve come equipped with failsafe protection?

    Yes. This valve is ASSE 1070 listed, requiring it to slow the water flow to a trickle shall the anti-scald valve fail to perform properly.

  • Does this anti-scald mixing valve drop in pressure on outlet?

    The drop in pressure is neglegable, however there is some. Please see the waterflow chart here for the specifications on water pressure dropping on output.

  • What is the maximum working pressure for this anti-scald mixing valve?

    THe maximum working pressure for this anti-scald mixing valve is 125 PSI.

  • What is the minimum working water pressure for this anti-scald mixing valve?

    There is no minimum working water pressure required for this anti-scald valve, however their is a minimum water flow required of 0/25 GPM.

  • Can this anti-scald mixing valve be installed on my hot water tank?

    This valve is only recomended for shower units, sinks, and small hot water tanks. If installing on a large hot water tank, we recommend using a 3/4" valve or larger. You can find a 3/4" anti-scald mixing valve here.

  • Can I install this anti-scald mixing valve vertically?

    Yes. You can install this valve horizontally or vertically. The orientation of this valve will not affect the functionality of this valve.

  • Is this valve lead free?

    Yes, this valve is certified to meet Low Lead requirements of wetted surface area contianing less than 0.25% lead by weight.

  • Does this valve come equipped with a check valve?

    Yes, this valve contains a check valve on each of the hot and cold inlets.
