Shower Timer, Coin-Op - Canadian Quarter

SKU: COIN-CAQ-12VDC
Voltage
Regular price $550.00
/
  • FREE SAME DAY SHIPPING FOR ORDERS OVER $25 (US ONLY)

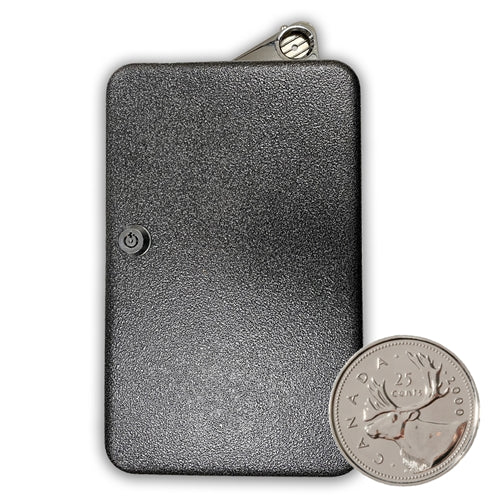

Coin-Op Shower Timer | Canadian Mountie

General Information

  • Timer Type: CAN Mountie Timer
  • Construction Material: 16 Gauge Cold Rolled Steel
  • Finish: Scratch Resistant Powder Coated Paint
  • Finish: Coin Entry & Coin Return Cup are made of polished chrome
  • Height: 11.75"
  • Overall Height with Coin Acceptor: 14"
  • Overall Width: 7.31"
  • Overall Depth: 3.82"
  • Mounting: 0.25" Diameter Hole for up to #10 Screws
  • Temperature: -40 degrees (F) to 149 degrees (F)
  • Humidity: 95% Relative non-condensing
  • No. of Coins to Vend: 1 to 7 (Adjustable via DIP Switches)
  • Min./Max. Time: 5 Seconds/ 1 Hour 14 Minutes 5 Seconds
  • Coins Inserted During Vend Add Additional Time

Coin-op Timer Electrical Information

  • UL Recognized: UL File # E224248
  • Input Voltage: Available in 115 VAC, 220 VAC, 12 VDC, 24 VAC Models
  • 24 Volt timers have a MAXIMUM input of 25.5 Volt AC
  • Power Consumption: 3.7 Watts Max.
  • Switch Input: 25 Millisecond Min. ON, 30 Millisecond Min. OFF
  • Switch Output Voltage: Same as the input Voltage
  • Requires a Ground Fault Circuit Breaker (GFCI)
  • CAUTION: Timer is NOT Waterproof. Do NOT Expose Timer to Direct Water Contact
  • Timer must be wired by a licensed electrician.

Coin-Op Timer Features

  • Coin Mechanism, Cash Box (Holds Approximately 600 Coins), and Solid State Timer
  • Round Barrel Key Lock for Extra Security
  • Corrosion Resistant Body
  • Easy to set DIP Switch control

SPECIFICATIONS SHEET

MECHANISM ADJUSTMENT SHEET

  • Shower Timer
  • Solenoid Valve
  • Transformer: 115-12VDC1000
  • UL Listed (UL file # E224248)
  • ADA Compliant

  • Commercial and Residential
  • Air Compressors
  • Air Conditioners
  • Control Floodlights
  • Billiards / Pool Halls
  • Commercial Laundromats
  • Coin-Operated Shower Timers
  • Indoor and Outdoor Pool Showers
  • Indoor and Outdoor Beach Showers
  • Campgrounds and RV Parks
