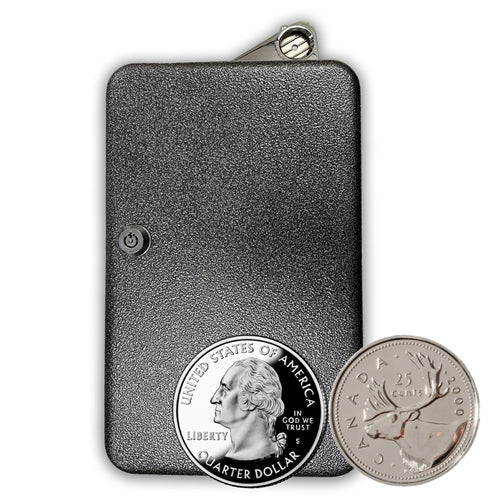

Coin-Op Shower Timer | US Quarter/ CAN Quarter

The US Quarter Canadian Quarter Shower Timer is a tough coin-operated timer made from strong steel with a scratch-resistant finish and shiny chrome parts where you insert and return coins. It can take 1 to 7 coins and will run for 5 seconds to just over an hour, depending on how you set it.

This timer is safe, uses little power, and works with different voltage options (115V, 220V, 12V, 24V). It also includes a coin mechanism, a cash box that holds about 600 coins, a reliable timer, a secure lock, and easy-to-use switches for setting it up.

Table comparing coin-timer voltage to recommended solenoid voltage with notes on compatibility.

SPECIFICATION SHEET: DOWNLOAD

MECHANISM ADJUSTMENT SHEET: DOWNLOAD

SOLENOID VALVES: SHOP

General Information

Timer Operation Type	US Quarter and Canadian Quarter Combo Coin Timer
Mounting	0.25" Diameter Hole for up to #10 Screws
Construction Material	16 Gauge Cold Rolled Steel
Finish	Scratch Resistant Powder Coated Paint; Coin Entry & Coin Return Cup are made of polished chrome

Connections & Dimensions

Input Voltage	115 VAC, 220 VAC, 12 VDC, 24 VAC
Width	7.5"
Height	11.75" (14” With Coin Acceptor)
Depth	4"

Product Features

Working Temperature Range	-40 Degrees F - 149 Degrees F
Humidity	95% Relative non-condensing
Cash Box	Holds Approximately 600 Coins
Number of Coins to Vend	1 to 7 (Adjustable via DIP switch)
Time Adjustable	Yes, 5 Seconds - 1 Hour 14 Minutes 5 Seconds
Vandal Resistant	Key Lock for Extra Security
Body	Corrosion Resistant
CAUTION	Timer is NOT Waterproof. Do NOT Expose Timer to Direct Water Contact

What's Included

Item(s)	Shower Timer

What's Not Included?

Item(s)	Solenoid Valve Transformer: 115-12VDC1000 Ground Fault Circuit Breaker (GFCI) Electrician: Timer must be wired by a licensed electrician

Certifications & Approvals

Safety Listing(s)	UL Listed (UL file # E224248) ADA Compliant

Applications & Uses

Facility Types	Billiards / Pool Halls Campgrounds and RV Parks
Systems / Equipment	Air Compressors Air Conditioners Control Floodlights Coin-Operated Shower Timers Indoor and Outdoor Pool Showers Indoor and Outdoor Beach Showers
Markets	Commercial and Residential Commercial Laundromats

Documents

Specification Sheet	Coin Timer Download
Mechanism Adjustment Sheet	Coin Timer Adjustment Download

Related Products

Product(s)	Solenoid Valves 1/2" \| Normally Closed
