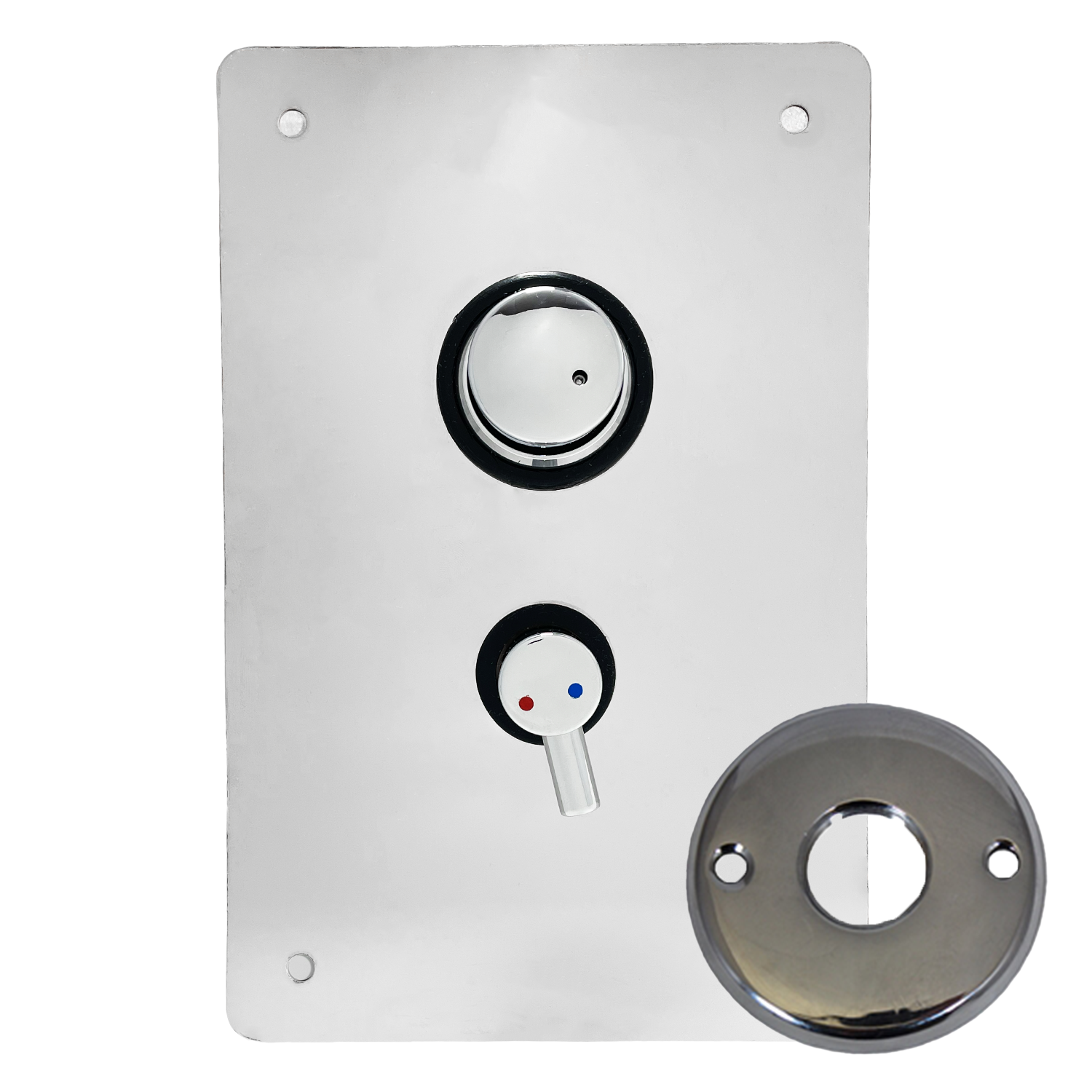

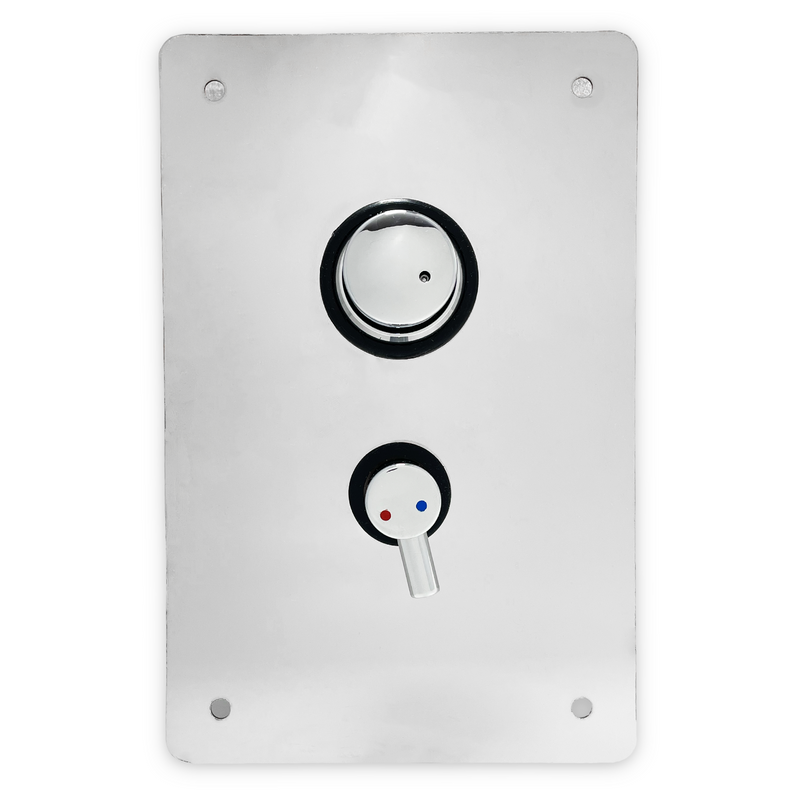

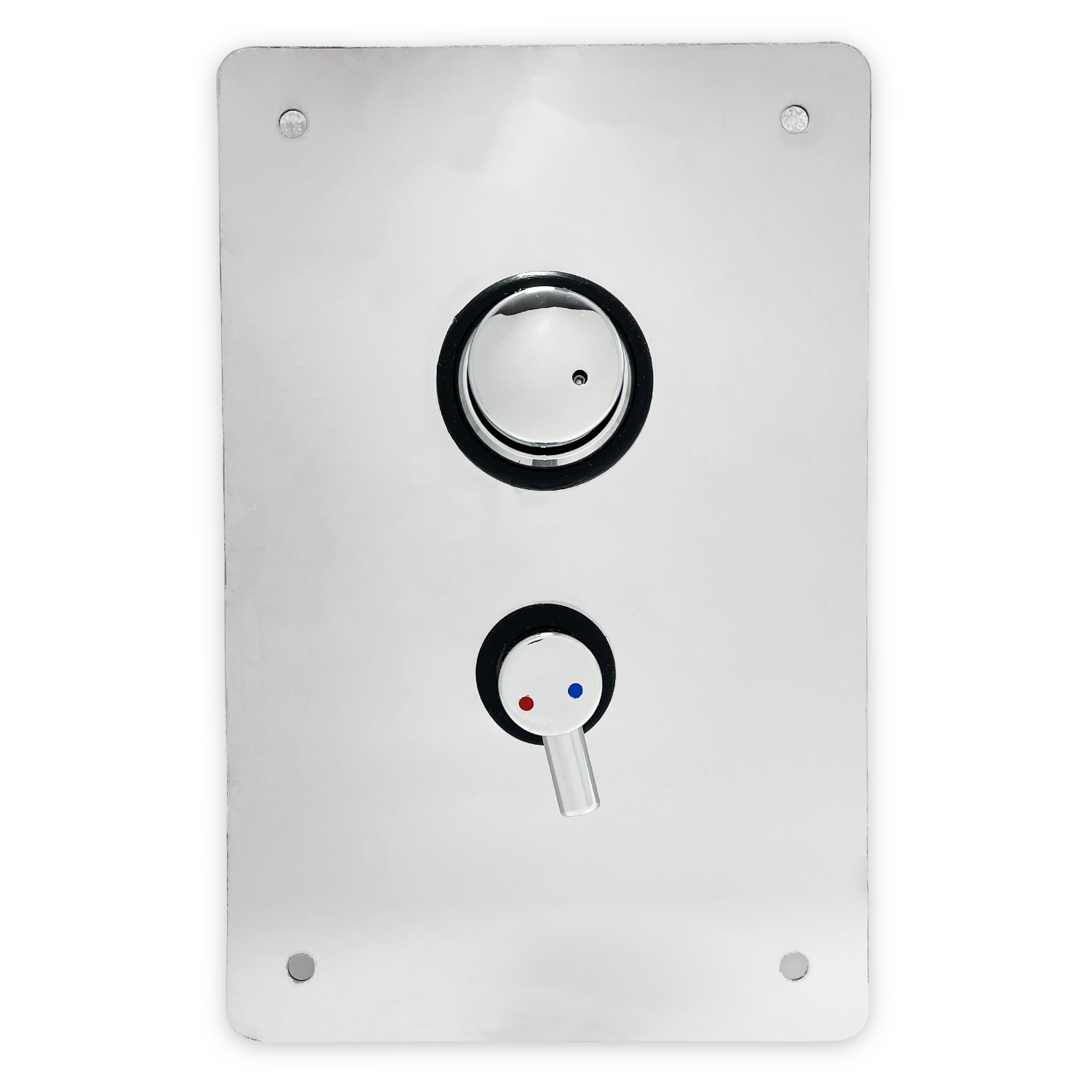

Push Button Shower Valve Panel Wall Unit | Time and Temp Adjustable
- Valve Type: Metering Push Button
- Installation Type: Concealed Wall Mount
- Construction Material: Solid Brass
- Finish: High Gloss Chrome Plated Finish
Shower Valve Panel Dimensions and Connections
- Connection: G1/2"
- Connection Type: MPT
- Overall Length: 3.70"
- Valve Body Length: 2.40"
- Valve Body Height: 1.91"
- Panel Width: 5.12"
- Panel Height: 7.87"
- Inlet: 0.375" NPT (1)
- Outlet: G 0.50" (1)
Shower Valve Panel Features
- Adjustable Open Time: Yes, 0-55 Seconds per Push
- Adjustable Temperature by End User: Yes

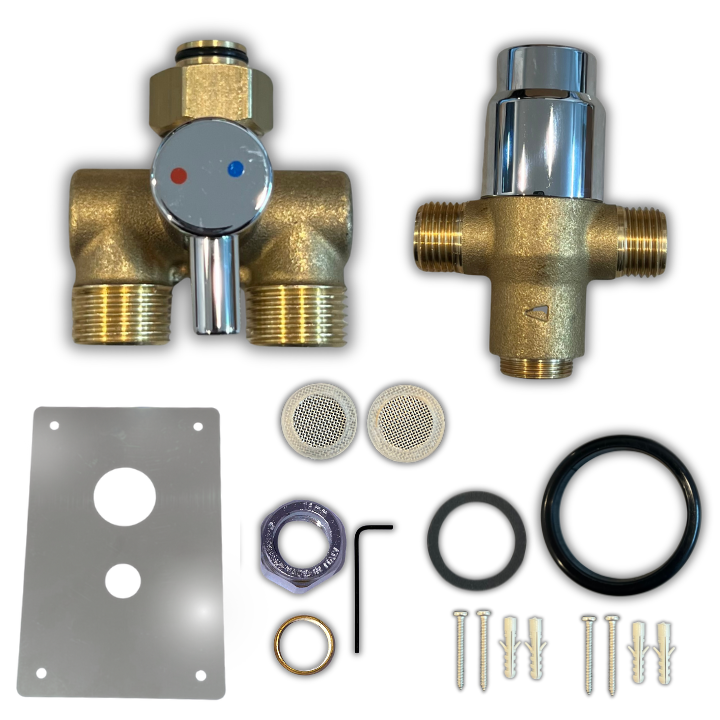

Shower Valve Panel Includes

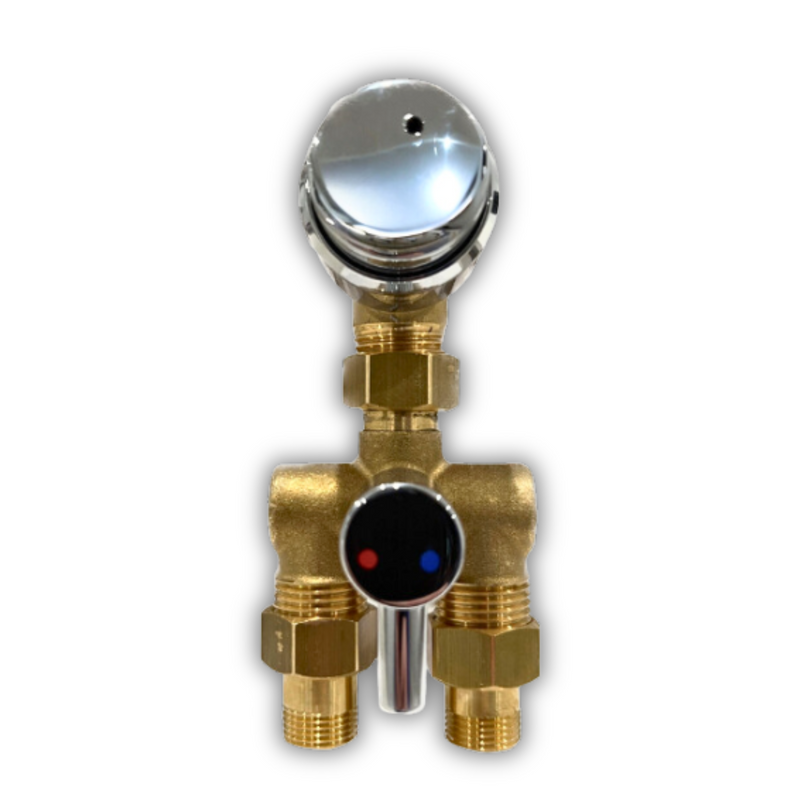

- Metering Shower Valve
- Metering Shower Valve Cartridge
- 1/2" Compression Fittings - Allow for Easy Retrofit
- Built in Pre-Mix Valve
Shower Valve Panel Applications
- Recreation Centers
- Beach Showers
