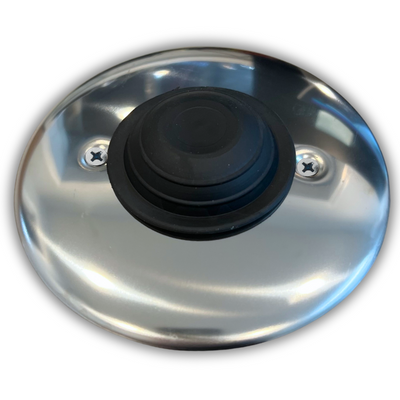

Foot Operated Water Valve | Self Closing

This pedal valve allow for quick hands free access to water. The self-closing foot operated water valve is also a metering water valve making it great for commercial facilities looking to conserve water. This foot operated water valve is made of a durable solid brass structure for durability. These water valves can be used for a shower or faucet and are perfect for medical environments, restaurants, and much more.

General Information

• Faucet Operation: Metering Foot Operated Valve
• Construction Material: Solid Brass
• Finish: High Gloss Chrome Plated Finish
• Activation Type: Manual Foot Pedal
• Installation Type: Concealed Floor Mount
• ADA Compliance: No
• Made for commercial use

Timed Valve Dimensions and Connections

• Connection: G 1/2"
• Connection Type: MPT
• Overall Length: 4.54" - 4.84"
• Valve Body Length: 2.60"
• Valve Body Height: 3.50" - 3.90"
• Inlet: 0.50" (2)
• Outlet: 0.50" (1)

Timed Valve Features

• Water Flow: 1.5 GPM at 43.5 PSI
• Open Time: 3 Seconds per Push, Nonadjustable

• Adjustable Temperature by End User: No
• Adjustable Water Flow: 1.6 GPM, 1.3 GPM, 2.1 GPM
• Temperature: Max temperature 160 degrees Fahrenheit
• Adjustable Floor Height
• 15 year warranty on Valve Body

Timed Valve Includes

• 1/2" Compression Fittings - Allow for Easy Retrofit
• Built in Pre-mix Valve

Timed Valve Uses

• Campgrounds
• Gyms
• Recreation Centers
• Beach Showers

SPECIFICATIONS SHEET
