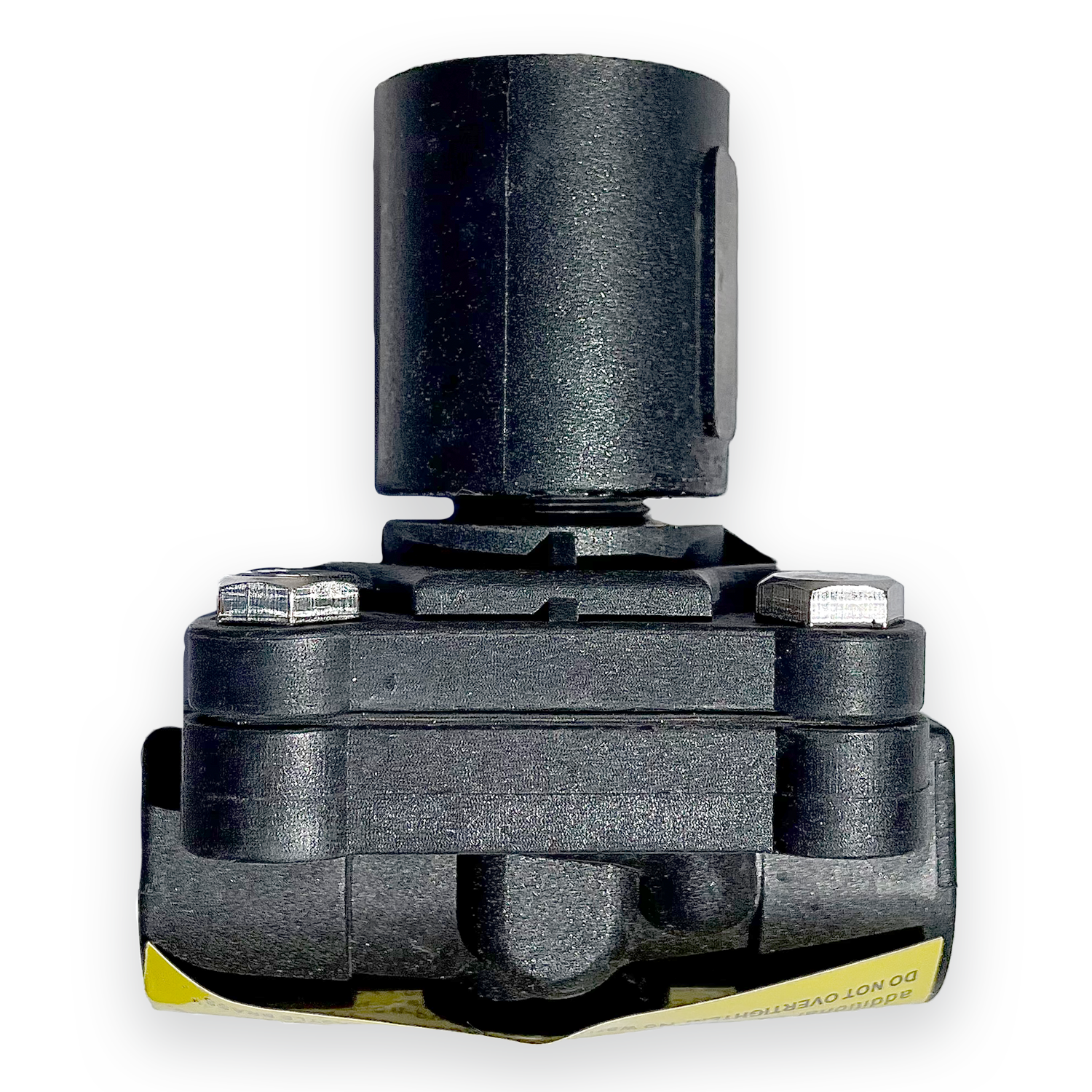

solenoid valve - 1/2" - pilot operated main

nylon solenoid valve - 1/2" - pilot operated top

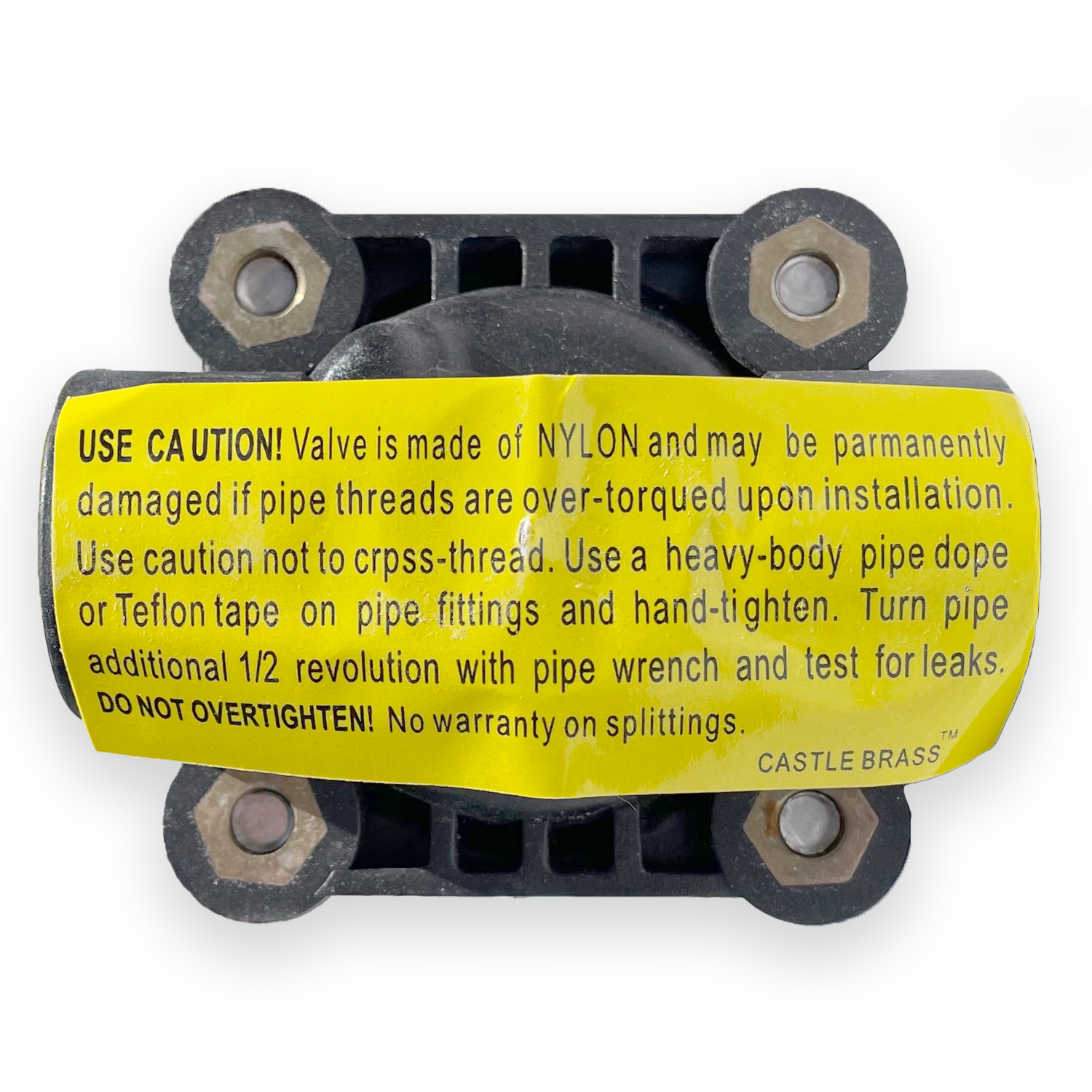

1/2" pilot operated nylon solenoid valve Bottom 1

Solenoid Vave, Pilot Operated 1/2" | Nylon, Caution dimensions

Solenoid Valve 1/2" | Brass, Advantages and Disadvantages Breakdown how it works 1

Voltage

12 Volt DC

24 Volt AC

120 Volt AC

Price

FREE SAME DAY SHIPPING FOR ORDERS OVER $25 (US ONLY)

[{"id":37715697139907,"title":"12 Volt DC","option1":"12 Volt DC","option2":null,"option3":null,"sku":"SOLP2N12V","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Solenoid Valve, Pilot Operated 1\/2\" | Nylon - 12 Volt DC","public_title":"12 Volt DC","options":["12 Volt DC"],"price":5995,"weight":5000,"compare_at_price":null,"inventory_management":"shopify","barcode":"633090485848","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37715697238211,"title":"24 Volt AC","option1":"24 Volt AC","option2":null,"option3":null,"sku":"SOLP2N24V","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Solenoid Valve, Pilot Operated 1\/2\" | Nylon - 24 Volt AC","public_title":"24 Volt AC","options":["24 Volt AC"],"price":5995,"weight":5000,"compare_at_price":null,"inventory_management":"shopify","barcode":"633090485855","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37715697172675,"title":"120 Volt AC","option1":"120 Volt AC","option2":null,"option3":null,"sku":"SOLP2N120V","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Solenoid Valve, Pilot Operated 1\/2\" | Nylon - 120 Volt AC","public_title":"120 Volt AC","options":["120 Volt AC"],"price":5995,"weight":5000,"compare_at_price":null,"inventory_management":"shopify","barcode":"633090485831","requires_selling_plan":false,"selling_plan_allocations":[]}]

Solenoid Valve | Nylon Body

Our pilot-operated nylon solenoid valves feature 1/2” female NPT connections, making them compatible with 1/2” copper or CPV plastic tubing. These valves are designed to be controlled by coin timers, which signal the internal pilot to switch and open the valve, allowing water to flow through.

Table showing which solenoid valve voltage goes with each coin timer voltage

How Solenoid Valves Work

1. Coin Timer: Insert a coin to start the timer, which controls how long the valve stays open.

2. Electrical Signal: The coin timer sends an electrical signal to the solenoid valve, instructing it to open.

3. Solenoid Valve Opens: Upon receiving the signal, the solenoid valve opens, allowing water (or gas) to flow through, such as in a coin-operated shower.

4. Timer Runs: The coin timer keeps track of the duration based on the amount of money inserted.

5. Valve Closes: When the set time expires, the coin timer signals the solenoid valve to close, stopping the flow of water (or gas).

This system ensures efficient and controlled use of water, perfect for applications like coin-operated showers.

Valve Type: Normally Closed Solenoid Valve
Valve Activation: Pilot
Coil Type: UR Rated, Class F
Body Material: Nylon
Sealing Material: Buna-N Rubber
Finish Type: Black Nylon
Be Sure You Order The Correct Voltage To Match Your Coin Timer!

Connection Inlet: 1/2" FPT
Connection Outlet: 1/2" FPT
Length: 2.75"
Height: 4"
Width: 2"

Max Working Temperature: 176 Degrees F
Easy Disassembly for cleaning and field repair
Corrosion Resistant Body
Working Temperature Range: 14 Degrees F - 140 Degrees F

Solenoid Valve

Electrician: Solenoid Valve must be wired by a licensed electrician

Commercial and Residential
Air, Gas, Water, and Light Oil
