*Push Button Shower Panels 86mm (Adjustable Time Only)

SKU: SLSHVC-355-SPK-1
A silver vertical shower panel with a push button and ligature resistant shower head
Outdoor Shower Panel Lifestyle 1
Outdoor Shower Panel components parts

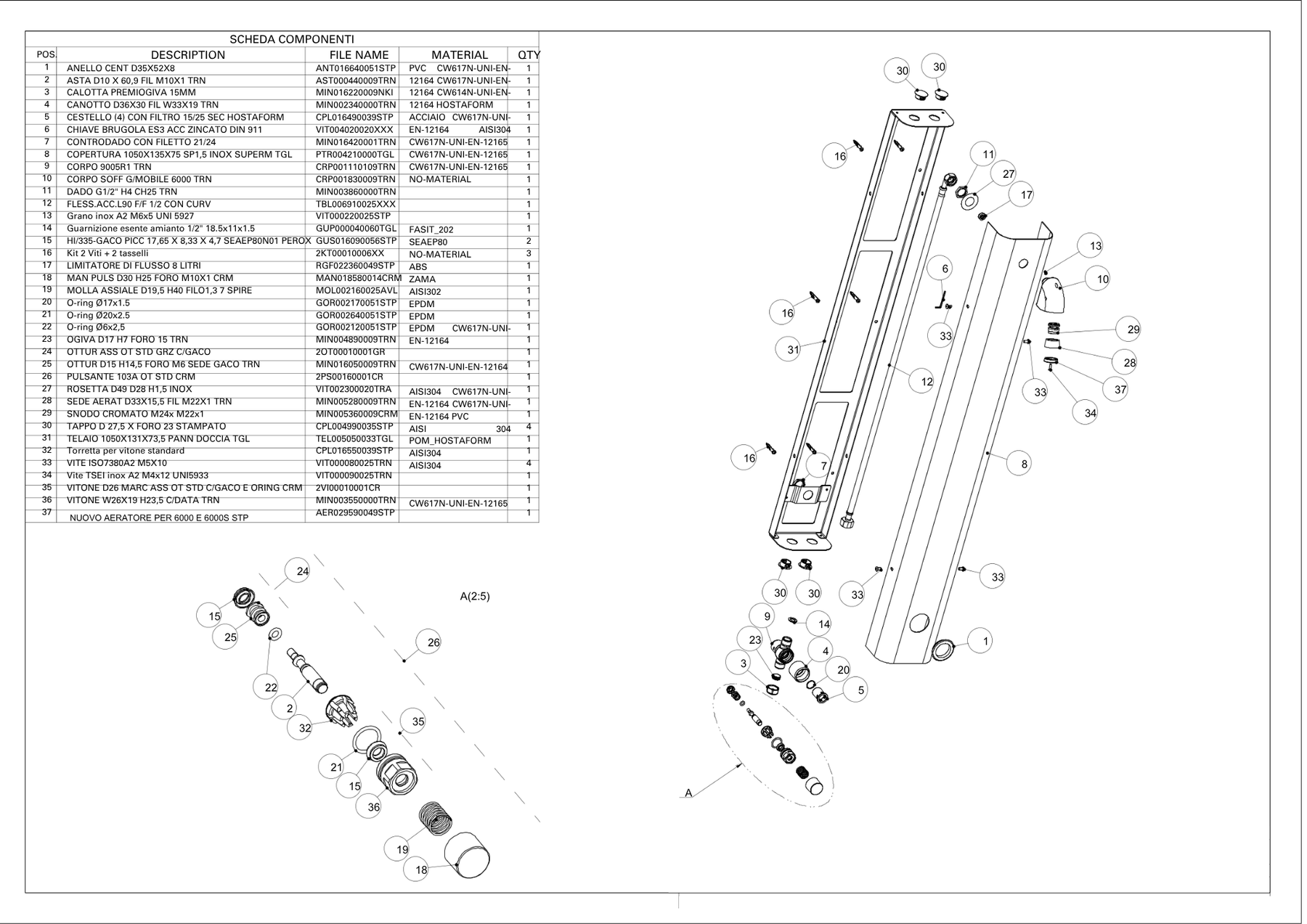

SLSHVC-355 Exploded diagram
355 Shower Panel Exploded
All Shower Valves Catridges Maintenance Time Adjustments

*Push Button Shower Panels 86mm (Adjustable Time Only)

SKU: SLSHVC-355-SPK-1
Regular price $400.00
/
  • FREE SAME DAY SHIPPING FOR ORDERS OVER $25 (US ONLY)

Push Button Shower Panel | Time Adjustable

These ADA-approved self-closing shower panels have been flying off the shelves since they first hit the market. They’re wildly popular for three reasons:

1. They’re straightforward. This makes them a breeze to install, use, and fix. Plus, with fewer parts, there’s less that can go wrong.

2. They’re tough. These anti-vandal, ligature-resistant panels are specifically built to handle heavy commercial use. Whether installing them in a prison, public beach, homeless shelter, behavioral health facility, or RV resort, you can trust that these panels will stand up to the challenge and last a long time.

3. They’re budget-friendly and stylish! Renovating or adding a bathroom can be costly. We kept this in mind and designed these panels to look sleek like a Ferrari but work and cost like a Toyota. They also help reduce water usage, saving you money in the long run. Getting these is an easy decision.

General Information

Valve TypeSelf Closing Metering Valve
Valve ActivationManual Push Button Valve
Installation TypeConcealed Wall Mount
Construction MaterialLead Free Solid Brass
FinishStainless Steel

Connections & Dimensions

Inlet1/2" MPT
Outlet1/2" MPT
Panel Width5.3" (135mm)
Panel Height41.3" (1050mm)

Product Features

Time AdjustableNo, 30 Seconds
Temperature AdjustableNo
Working Temperature Range40 Degrees F - 160 Degrees F
Built-in PremixNo
Lead Free and Corrosion ResistantYes
Vandal ResistantReduces tampering and risk of flooding
Water SavingUp To 85%!

What's Included

Item(s)
  • Shower Panel
  • Push Button Shower Valve
  • Shower Head
  • Long Braided Supply Line (36 in)
  • Allen Wrench For Time Regulation (1.3 mm)
  • Compression Nut With Brass Ferrule (1/2 in)
  • Phillips Pan Head Screws With Plastic Anchors (1 1/2 in)
  • Black Buffer Ring (35x42 mm)

What's Not Included?

Item(s)

Certifications & Approvals

Safety Listing(s)
  • ADA Compliant
  • Molded chrome-plated body in accordance with EN 12540
  • Brass body in accordance with EN 1982, EN 12164, EN 12165
  • 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
  • Timing in conformity with EN 816

Applications & Uses

Facility Types
  • Prisons and Detention Centers
  • Hotels and Resorts
  • Gym and Locker Room Facilities
  • Recreation And Aquatic Centers
  • Campgrounds and RV Parks
Systems / Equipment
  • Indoor and Outdoor Pool Showers
  • Indoor and Outdoor Beach Showers
Markets Commercial and Residential

Documents

Specification Sheet Specification Sheet
Installation Instructions Installation Instructions

Replacement Parts

Cartridge RC-355C
