*Push Button Shower Panel ASME/CSA (Fixed Time)

SKU: 38212-SPK
Push Button Shower Panel ASME/CSA (Fixed Tim)
*Push Button Shower Panel ASME/CSA (Fixed Time)
*Push Button Shower Panel ASME/CSA (Fixed Time)

*Push Button Shower Panel ASME/CSA (Fixed Time)

SKU: 38212-SPK
Regular price $425.00
/
  • FREE SAME DAY SHIPPING FOR ORDERS OVER $25 (US ONLY)

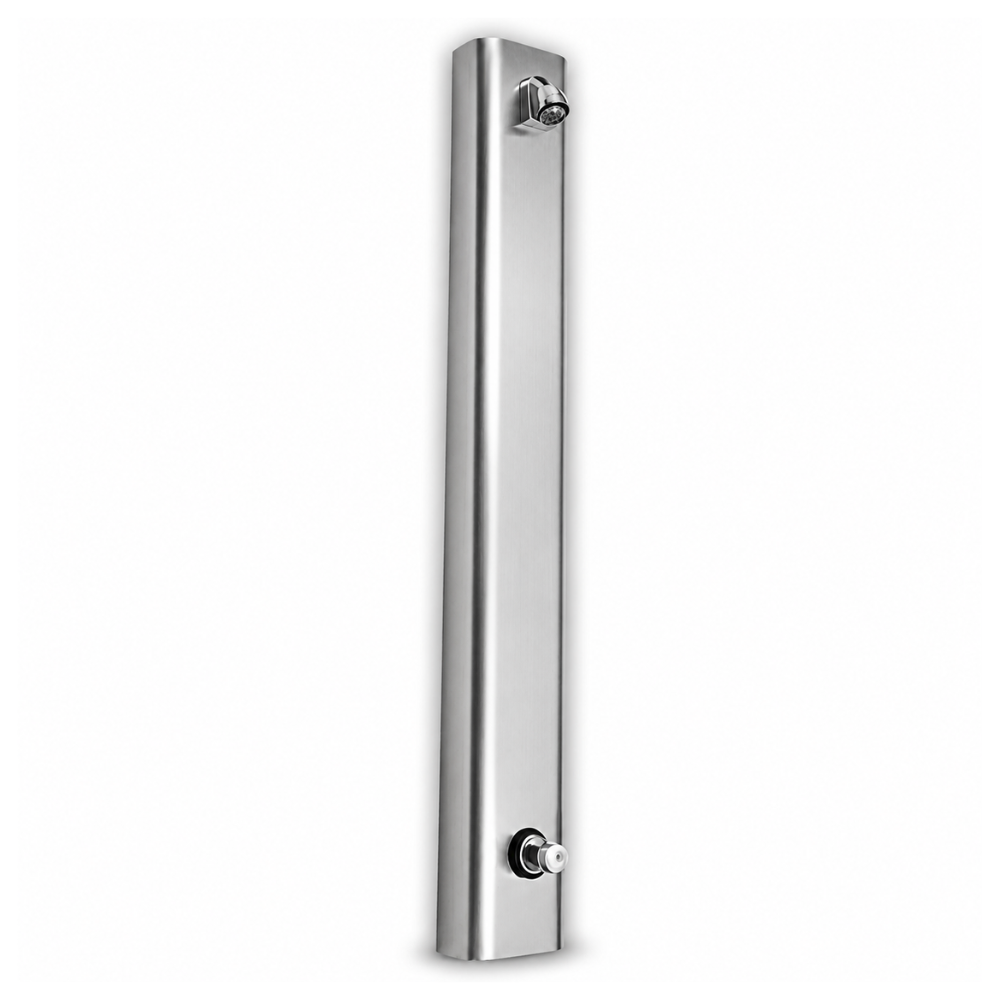

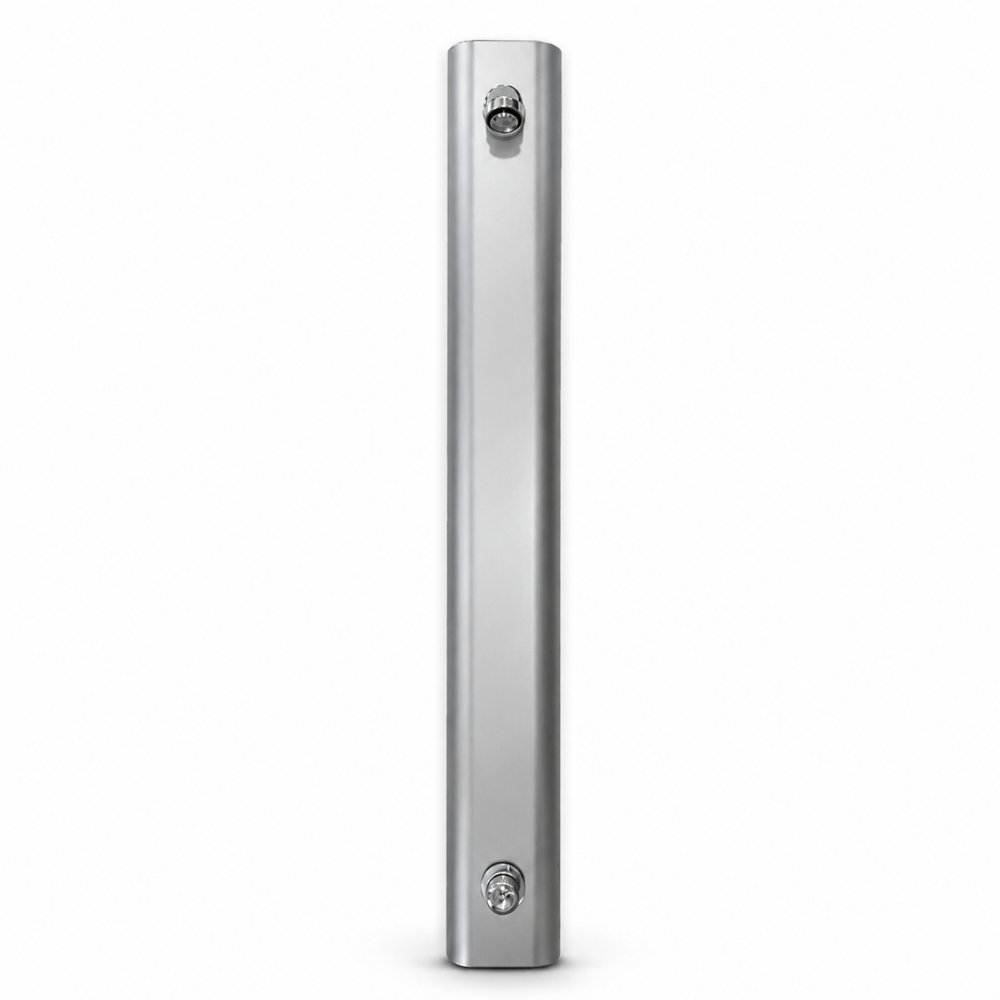

Push Button Shower Panel (ASME/CSA Compliant)

These ADA-approved self-closing shower panels have been selling out since the week they first launched. These panels are outrageously popular for three reasons:

1) They're simple. This makes them easy to install, function, and repair. it also makes them less prone to malfunction since there are so few parts.

2) They're durable. These anti-vandal ligature-resistant panels were deliberately designed to withstand repetitive commercial use. Whether you plan to use these in a prison, public beach, homeless shelter, behavioral health facility, or RV resort, you need not worry. These panels will hold up well and last a while.

3) They're affordable and beautiful! Renovating or adding a bathroom is expensive. We kept this in mind when creating these. We designed these shower panels to look sleek like a Ferarri but function and price like a Toyota. By reducing water consumption, you'll also save money by using these panels. Buying these is a no-brainer.

General Information

  • Shower Valve Operation: Metering Push Button
  • Construction Material: Solid Brass
  • Finish Type: High Gloss Chrome Plated Finish

Shower Panel Dimensions and Connections

  • Connection Inlet: 3/4" MPT (1/2" MPT Adapters Included)
  • Connection Outlet: 3/4" MPT (1/2" MPT Adapters Included)
  • Valve Body Length: 3.35" - 3.94" (85-100 mm)
  • Valve Body Height: 4.3" (110 mm)
  • Panel Height: 41.34"
  • Panel Width: 5.31"

Shower Panel Features

  • Water Flow Rate: 2.64 GPM at 43.51 PSI
  • Adjustable Water Flow: Flow Rate is Controlled Through a Ring Nut
  • Working Water Pressure: 14.50 to 72.5 psi
  • Water Flow Time:  30 Seconds per Push (±5 Sec.)
  • Adjustable Temperature by End User: No
  • Maximum Temperature: 167°F
  • Anti-liming and corrosion-resistant materials

Shower Panel Includes

  • Push Button Shower Valve
  • Adjustable Shower Head
  • 2 (3/4" MPT) to (1/2" MPT) Adapters
  • 2 Compression Nuts With Brass Ferules (1/2")
  • 6 Pan Head Screws With Plastic Anchors
  • 1 Braided Supply Line (36" L With 1/2" FPT Connectors)

SPECIFICATIONS SHEET

INSTALLATIONS INSTRUCTIONS

  • Replacement Cartridge: RC-01012
  • CSA B125.1
  • ASME A112.18.1

  • Prisons and Detention Centers
  • Hotels and Resorts
  • Gym and Locker Room Facilities
  • Commercial and Residential
  • Recreation And Aquatic Centers
  • Indoor and Outdoor Pool Showers
  • Indoor and Outdoor Beach Showers
  • Campgrounds and RV Parks
