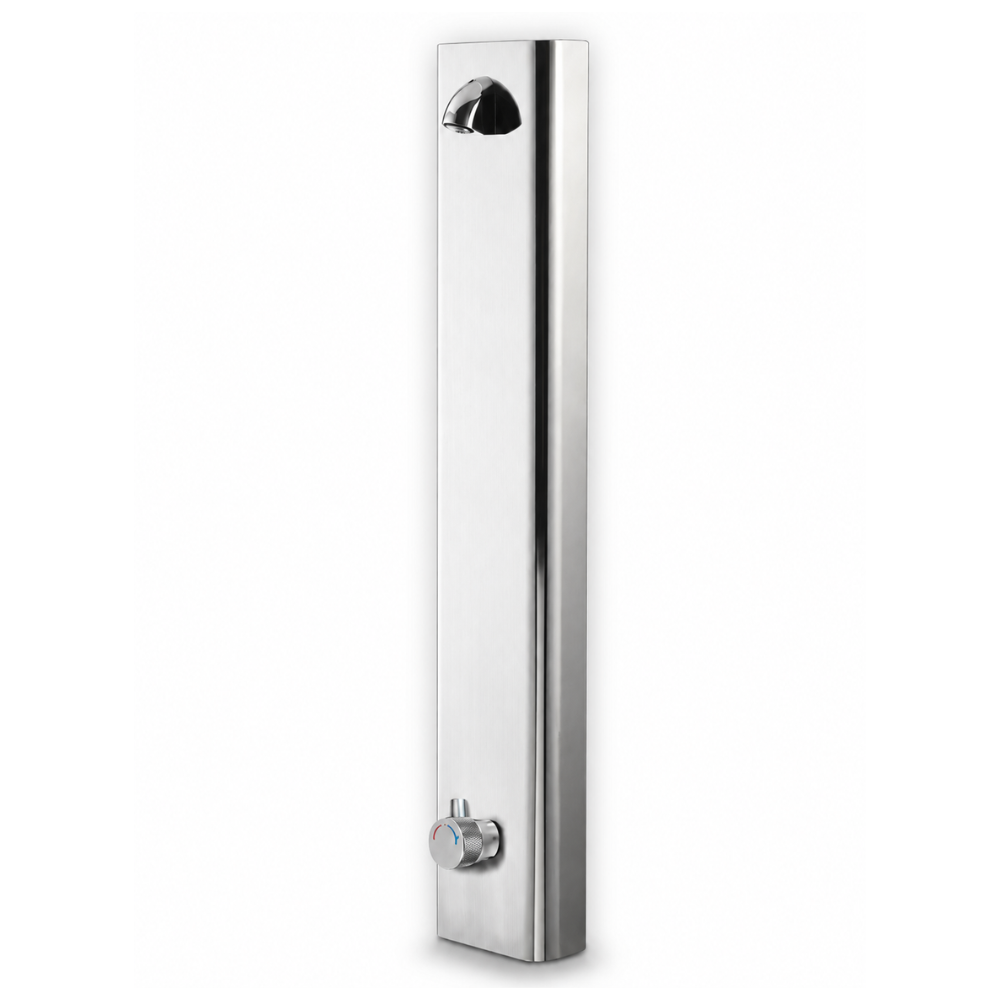

Push Button Shower Panel | Temperature Adjustable

These ADA-approved self-closing shower panels have been flying off the shelves since they first hit the market. They’re wildly popular for three reasons:

1. They’re straightforward. This makes them a breeze to install, use, and fix. Plus, with fewer parts, there’s less that can go wrong.

2. They’re tough. These anti-vandal, ligature-resistant panels are specifically built to handle heavy commercial use. Whether installing them in a prison, public beach, homeless shelter, behavioral health facility, or RV resort, you can trust that these panels will stand up to the challenge and last a long time.

3. They’re budget-friendly and stylish! Renovating or adding a bathroom can be costly. We kept this in mind and designed these panels to look sleek like a Ferrari but work and cost like a Toyota. They also help reduce water usage, saving you money in the long run. Getting these is an easy decision.

General Information

Valve Type	Self Closing Metering Valve
Valve Activation	Manual Push Button Valve
Installation Type	Concealed Wall Mount
Construction Material	Lead Free Solid Brass
Finish	Stainless Steel

Connections & Dimensions

Inlet	1/2" MPT
Outlet	1/2" MPT
Panel Width	7.9" (200mm)
Panel Height	41.3" (1050mm)

Product Features

Time Adjustable	Yes, 3-40 Seconds
Temperature Adjustable	Yes
Built-in Premix	Yes
Working Temperature Range	40 Degrees F - 160 Degrees F
Lead Free and Corrosion Resistant	Yes
Vandal Resistant	Reduces tampering and risk of flooding
Water Saving	Up To 85%!

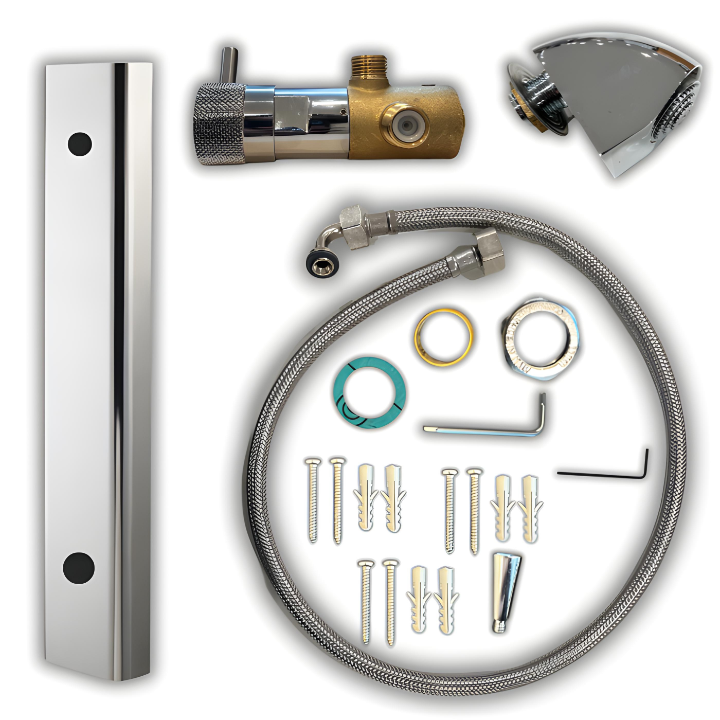

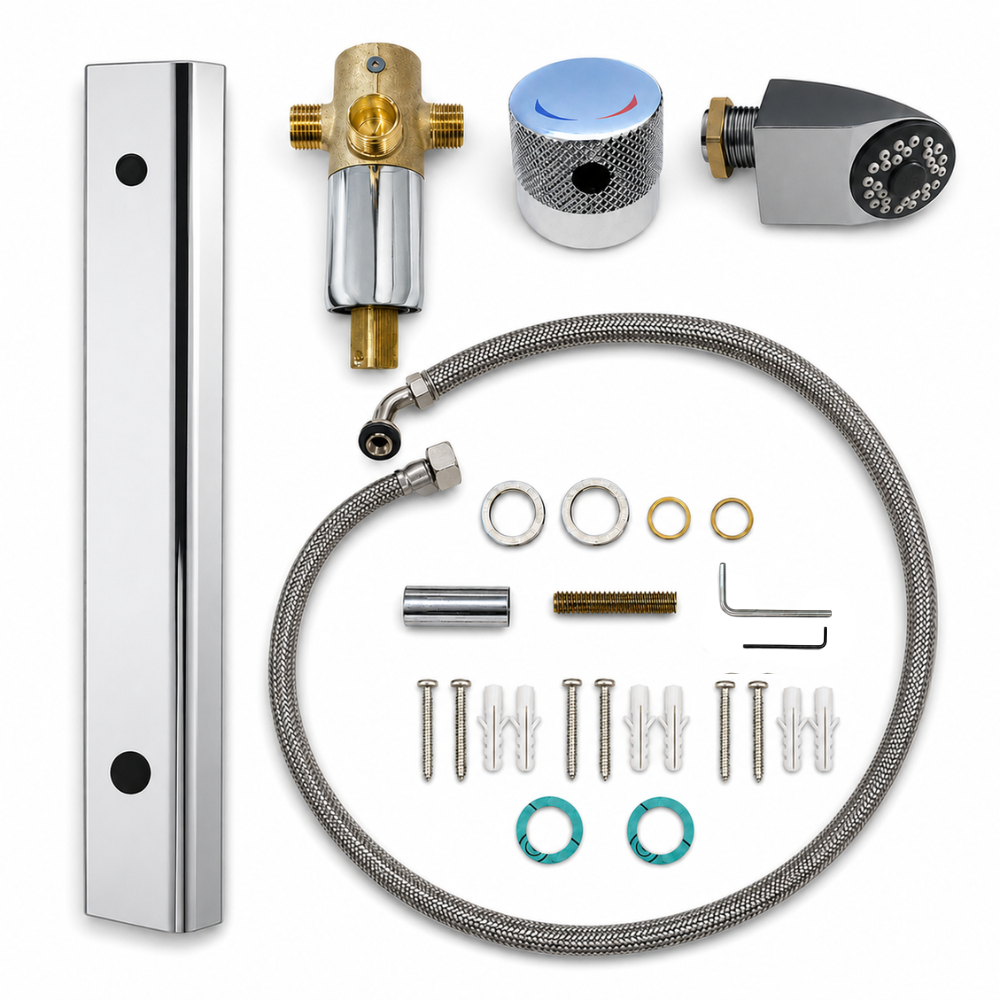

What's Included

Item(s)	Push Button Shower Valve Shower Panel Shower Head Long Braided Supply Line (36 in) Allen Wrench For Time Regulation (1.3 mm) Allen Wrench For Screw Installation (3 mm) Phillips Pan Head Screws With Plastic Anchors (1 1/2 in) Black Buffer Ring (35x42 mm) Paper Washer (1/2 in) Compression Nut With Brass Ferrule (1/2 in)

What's Not Included?

Item(s)	Replacement Cartridge

Certifications & Approvals

Safety Listing(s)	ADA Compliant Molded chrome-plated body in accordance with EN 12540 Brass body in accordance with EN 1982, EN 12164, EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227 Timing in conformity with EN 816

Applications & Uses

Facility Types	Prisons and Detention Centers Hotels and Resorts Gym and Locker Room Facilities Recreation And Aquatic Centers Campgrounds and RV Parks
Systems / Equipment	Indoor and Outdoor Pool Showers Indoor and Outdoor Beach Showers
Markets	Commercial and Residential

Documents

Specification Sheet	Shower Valve Download
Installation Instructions	Shower Valve Download

Replacement Parts

Cartridge	RC-SLSHVC-ADJ-SPK
