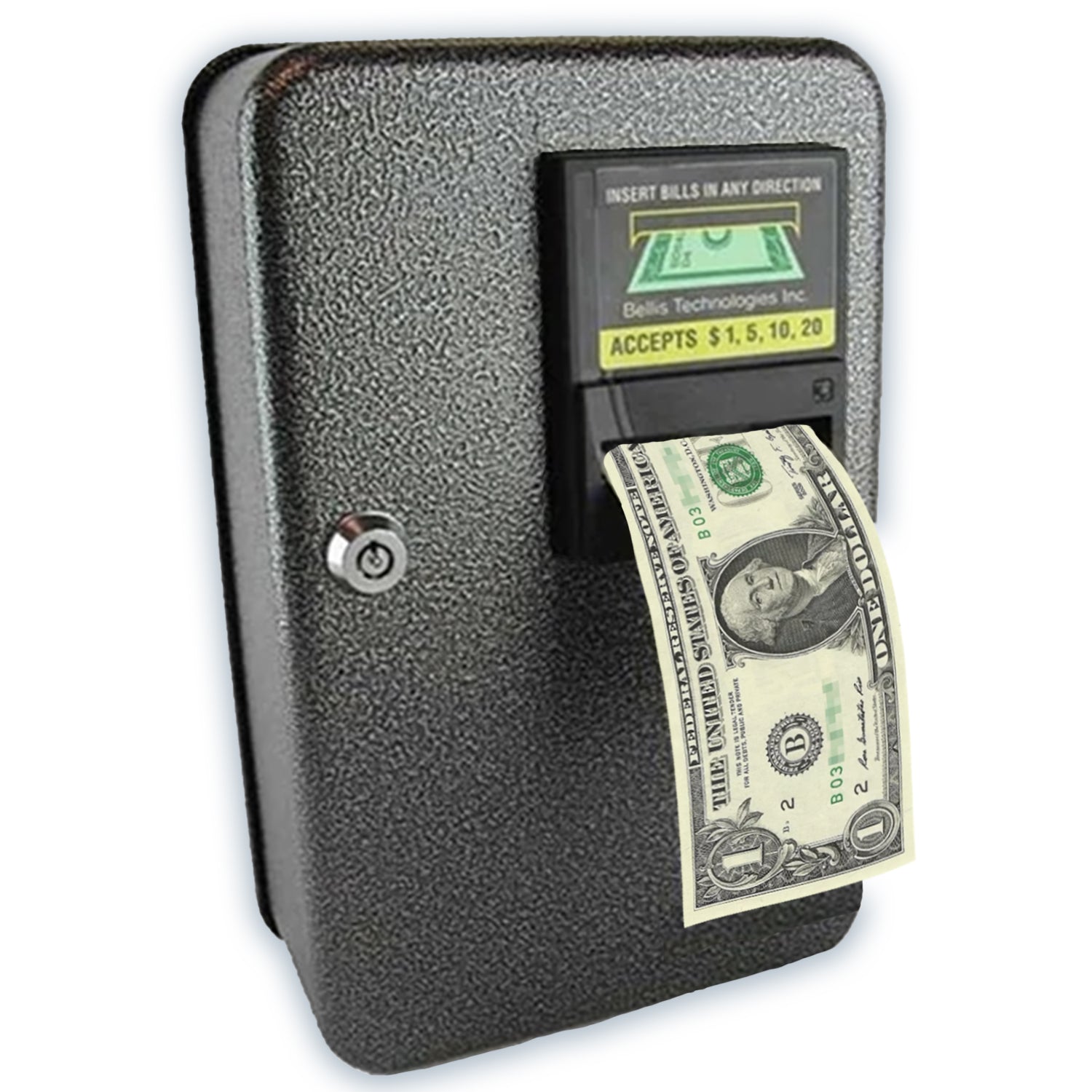

Shower Timer, US Multi-Bill, 120 Volt

SKU: COIN-Multi-Bill-TIMER-115
US Multi-Bill shower timer
120 volt shower timer, US multi-bill
switch settings on US multi-bill timer
how to bypass timer on multi-bill
Shower Timer, US Multi-Bill, 120 Volt,  Matching Solenoid Valve to Timer

Shower Timer, US Multi-Bill, 120 Volt

SKU: COIN-Multi-Bill-TIMER-115
Regular price $769.95
/
  • FREE SAME DAY SHIPPING FOR ORDERS OVER $25 (US ONLY)

Shower Timer | US Multi-Bill - 120 Volt

*Please Note: There is currently 5-15 day lead time for this product due to supply chain shortages. We apologize for the inconvenience.

General Information

  • Timer Type: US Multi-Bill Timer
  • Types Of Bills Accepted: $1, $5, $10, $20
  • Construction Material: 16 Gauge Cold Rolled Steel
  • Finish: Scratch Resistant Powder Coated Paint
  • Height: 11.75"
  • Overall Width: 7.50"
  • Overall Depth: 4.50"
  • Mounting: 0.25" Diameter Hole for up to #10 Screws
  • Timer Temperature: -40 degrees (F) to 149 degrees (F)
  • Bill Acceptor Temperature: 37 degrees (F) to 122 degrees (F)
  • Humidity: 95% Relative non-condensing
  • No. of Coins to Vend: 1 to 7 (Adjustable via DIP Switches)
  • Min./Max. Time: 5 Seconds/ 1 Hour 14 Minutes 5 Seconds
  • Bills Inserted During Vend Add Additional Time

Electrical Information

  • UL Recognized: UL File # E224248
  • Input Voltage: Available in 120 VAC
  • Power Consumption: 3.7 Watts Max.
  • Switch Input: 25 Millisecond Min. ON, 30 Millisecond Min. OFF
  • Switch Output Voltage: Same as the input Voltage
  • Requires a Ground Fault Circuit Breaker (GFCI)
  • Timer is NOT Waterproof. Do NOT Expose Timer to Direct Water Contact
  • Timer must be wired by a licensed electrician.

Features

  • Bill Acceptor with High Acceptance Rate of 99.8%
  • No Cash Box Necessary. Bills Stack in the Bottom of the Timer Box. (Holds  Approximately 100 Bills)
  • Solid State Timer
  • Round Barrel Key Lock for Extra Security
  • Corrosion Resistant Body
  • Easy to set DIP Switch control

SPECIFICATIONS SHEET

  • Shower Timer
  • Transformer: 115-12VDC1000
  • Solenoid Valve
  • UL Listed (UL file # E224248)
  • ADA Compliant

  • Commercial and Residential
  • Air Compressors
  • Air Conditioners
  • Control Floodlights
  • Billiards / Pool Halls
  • Commercial Laundromats
  • Indoor and Outdoor Pool Showers
  • Indoor and Outdoor Beach Showers
  • Campgrounds and RV Parks
  • Bill-Operated Coin Timers
