Push Button Shower Valve (Adjustable Time&Temp)

SLSHVC-ADJ

Regular price $180.00

Shipping calculated at checkout.

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Michal Moore
Exactly what was needed

Only place you can find time and temperature adjustable valves like this.

S
Shoshanna Brooker

Always great doing business with KingSupply

M
Milton Briggs

I am a first time customer and was dealing with a product I had never used before so I had questions. Customer and Technical service was great and got me the additional info I needed in a very timely manner.

S
Scott Harvey

Thank you for the prompt delivery. Haven't installed yet

Push Button Self Closing Shower Valve | Time and Temperature Adjustable

General Information

  • Shower Valve Operation: Metering Push Button
  • Construction Material: Solid Brass
  • Finish: High Gloss Chrome Plated Finish
  • Installation Type: Concealed Wall Mount
  • Shower Valve Activation: Manual Push Button
  • ADA Compliance: Yes
  • Commercial and Residential Use

Metering Self Closing Shower Valve Dimensions and Connections

  • Connection: G 1/2"
  • Connection Type: MPT
  • Overall Length: 4.88"
  • Valve Body Length: 2.60"
  • Valve Body Height: 3.43"
  • Inlet: G 0.50" (2)
  • Outlet: G 0.50" (1)

Shower Valve Features

  • Water Flow: 4 GPM at 43.5 PSI
  • Adjustable Open Time: Yes, 3-55 Seconds per Push
  • Adjustable Temperature by End User: Yes
  • Adjustable Water Flow: 1.6 GPM, 1.3 GPM, 2.1 GPM
  • 15 Year Warranty

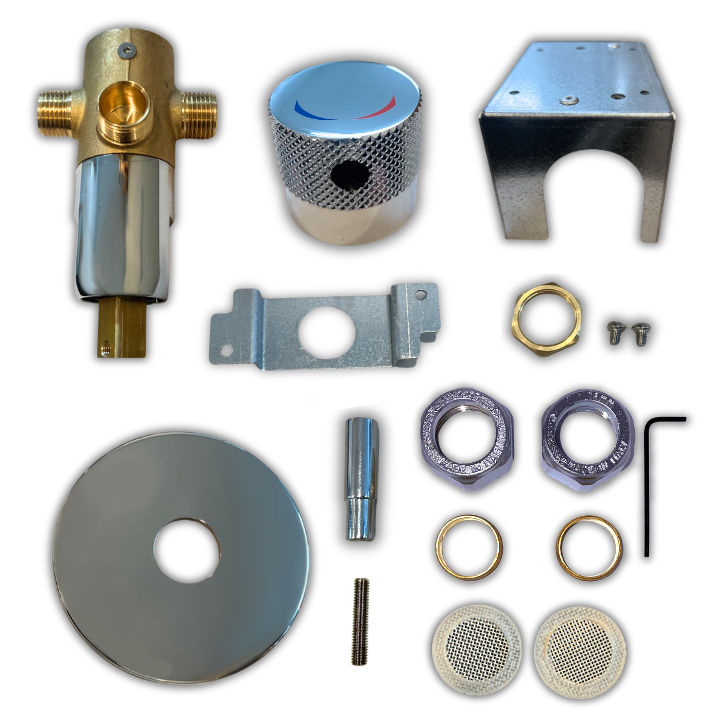

Shower Valve Includes

  • Built in Pre-mix Valve
  • 1/2" Compression Fittings - Allow for Easy Retrofit
  • 4 1/2" Escutcheon Plate - Inside Hole Diameter: 1 1/2"

Shower Valve Applications

  • Campgrounds
  • Gyms
  • Recreation Centers
  • Beach Showers

Sold Separately

SPECIFICATIONS SHEET

QUESTIONS & ANSWERS

Ask a Question
  • Does this metering shower valve does not come equipped with a shut off valve?

    No, this metering shower valve does not come equipped with a shut off valve. In order to perform any maintenance on this self closing showering valve, you must turn the water off at the source.

  • How is the water flow adjusted?

    The flow is adjusted by a cup on the bottom of the cartridge. The cartridge is the push button mechanism. When the cartridge is removed from the valve body the white cup at the bottom of the cartridge can be turned to control the amount of water flowing through to the output pipe. Please see the link here for a better illustration.

  • How is the open time adjusted on this shower valve?

    Every shower valve comes with a 1.25 mm allen wrench to adjust the self-closing time. There is a small adjustment screw in the small hole at the top of the push button cartridge. When the screw is turned counter-clockwise the shower valve will stay open longer. When the screw is turned clockwise this will shorten the open time. For further instructions and illustrations, please click here and here.

  • How long does this shower valve operate for?

    The shut off time for this metered shower valve is adjustable for an opening time from 3 to 55 seconds per push.

  • Is this shower valve equipped with an anti scald device?

    No. This shower valve has a maximum temperature of 180 degrees fahrenheit. In order to prevent scalding an antiscald device is recommended and can be found here.

  • Does this shower valve include a mixing valve?

    Yes. This metered shower valve has a built in premix valve. The user can adjust the temperature on this shower valve to their liking.

  • Do these shower valves have a warranty?

    Yes. This valve comes standard with a 15 year warranty.

  • What is a G 1/2\" connection?

    The G 1/2" connection is a british pipe thread. The difference between the G 1/2" and the 1/2" NPT is so negligable that the two can be used interchangably. If concerned about getting a tight fit, we recommend using some Loctite to seal the two connections together or try using Pex Pipe connections. With that said, we have sold thousands of these units over the span of 20 years and have never received a complaint regarding the G 1/2" connection.

  • Is this valve made in America?

    This valve is not manufactured in America. It is manufactured in Italy.

  • How do I secure the handles on this unit?

    We recommend using an extra strength thread locker such as Loctite to securely adhere the handles to the valves.

  • What is an MPT connection?

    An MPT connection is a male pipe thread connection, meaning it is a threaded pipe protruding from the valve itself, requiring a female connection such as a nut.

  • What is a G 1/2\" connection?

    The G 1/2" connection is a british pipe thread. The difference between the G 1/2" and the 1/2" NPT is so negligable that the two can be used interchangably. If concerned about getting a tight fit, we recommend using some Loctite to seal the two connections together or try using Pex Pipe connections. With that said, we have sold thousands of these units over the span of 20 years and have never received a complaint regarding the G 1/2" connection.
