General Information

• Timer Type: Multi Coin/Smart Card Digital Timer (Programmable)
• Construction Material: 16 Gauge Cold Rolled Steel
• Finish: White Epoxy Polyester Powder Case, Blue Moulded Fascia
• Overall Height: 10.83"
• Overall Width: 8.03"
• Overall Depth: 3.54"
• Weight: 8.16 lbs.
• Mounting: (3) #8 or #10 Screws
• Temperature: -40 degrees (F) to 104 degrees (F)
• Humidity: 95% Relative non-condensing
• No. of Coins to Vend: 1 to 16 (Adjustable via Programming)
• Min./Max. Time: 1 Seconds/ 99 Hours 59 Minutes
• Requires a Ground Fault Circuit Breaker (GFCI)
• Smart cards and smart card programmer must be purchased separately.

Coin Timer Electrical Information

• UL Recognized: UL File # E224248
• Input Voltage: Available in 115 VAC, 24 VAC, and 230 VAC Models
• 24 Volt timers have a MAXIMUM input of 25.5 Volt AC
• Output Voltage: 3A Resistive (115 VAC), 30A Resistive (24 VAC), 10 Watts (230 VAC)
• Power Consumption: 10 Watts (115 VAC), 10 Watts (24 VAC), 10 Watts (230 VAC)
• Requires a Ground Fault Circuit Breaker (GFCI)
• CAUTION: Timer is NOT Waterproof. Do NOT Expose Timer to Direct Water Contact
• Timer must be wired by a licensed electrician.

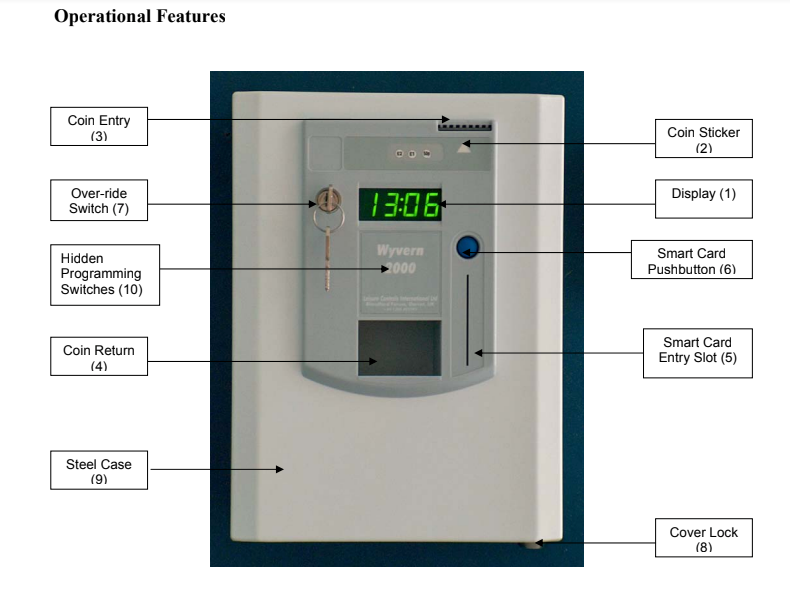

Coin Timer Features

• Electronic Coin Mechanism that can recognize up to 6 Different coins (including tokens) and a smart card
• Cash Box (Holds Approximately 400 Coins)
• 6" High Green LED Screen
• 24-Hour Real Time Clock
• 4 Digit - Hours & Minutes OR Minutes & Seconds
• Cash box holds approximately 450 coins/tokens
• 7 Segment Display Used for Programming
• Buzzer Time Feature
• Lockout Feature to Prevent the Timer from Exceeding the Maximum Time
• Radial 8 Pin Key Lock for Extra Security (2 Keys)
• Corrosion Resistant Body
• PLEASE NOTE: This unit is NOT Available for either Canadian $1 or Canadian $2

Coin Timer Uses

• Outdoor Showers
• Control Floodlights
• Air Conditioners
• Air Compressors
