Replacement Cartridge For 38212

01012

Regular price $85.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

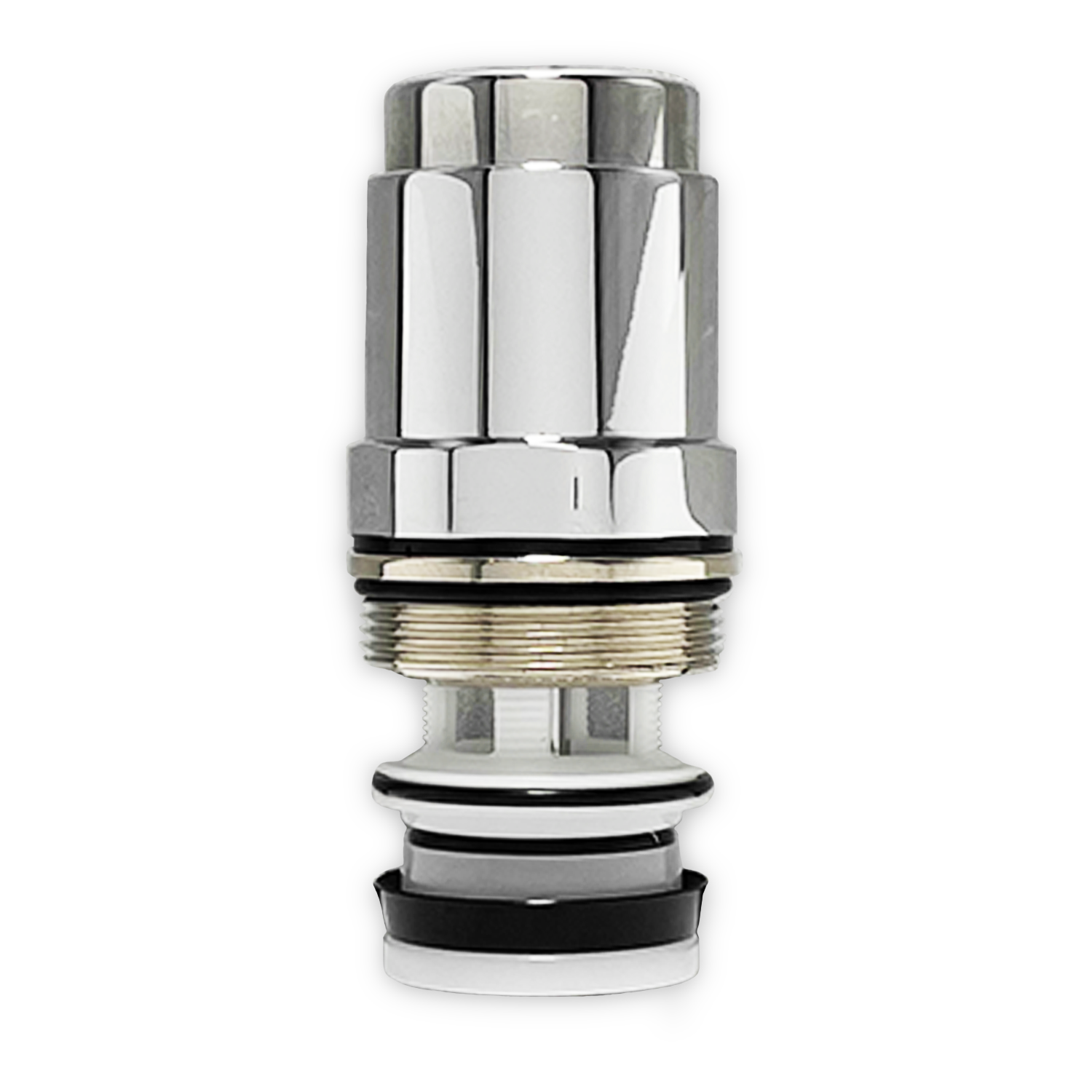

Replacement Cartridge | Concealed Single Tap Push Button Shower Valve

General Information

  • Replacement Cartridge for 38212
  • Valve Type: Metering Push Button
  • Installation Type: Concealed Wall Mount
  • Construction Material: Solid Brass
  • Finish: High Gloss Chrome Plated Finish

Features

  • Flow Rate: 10 l/min (2.64 gallons/min, 43.51 PSI) at 3 Bar With Integral Flow Limiter, Flow Rate is Controlled Through a Ring Nut
  • Water Pressure: 1 to 5, 5 bar (14.50 to 72.52 PSI)
  • Open Time:  30 Seconds per Push (±5 Sec.)
  • Adjustable Temperature by End User: No

Standards

  • CSA B125.1
  • ASME A112.18.1
  • Brass Body in accordance with EN 1982, EN 12164, EN 12165
  • Molded Chrome-Plated Body in accordance with EN 12540
  • 200-Hour Neutral Salt Spray Resistant (NSS) in accordance with ISO 9227

Uses

  • Campgrounds
  • Gyms
  • Recreation Centers
  • Beach Showers

Sold Separately
